Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Absolute Pressure Sensor >> Locations

Absolute Pressure Sensor: Locations

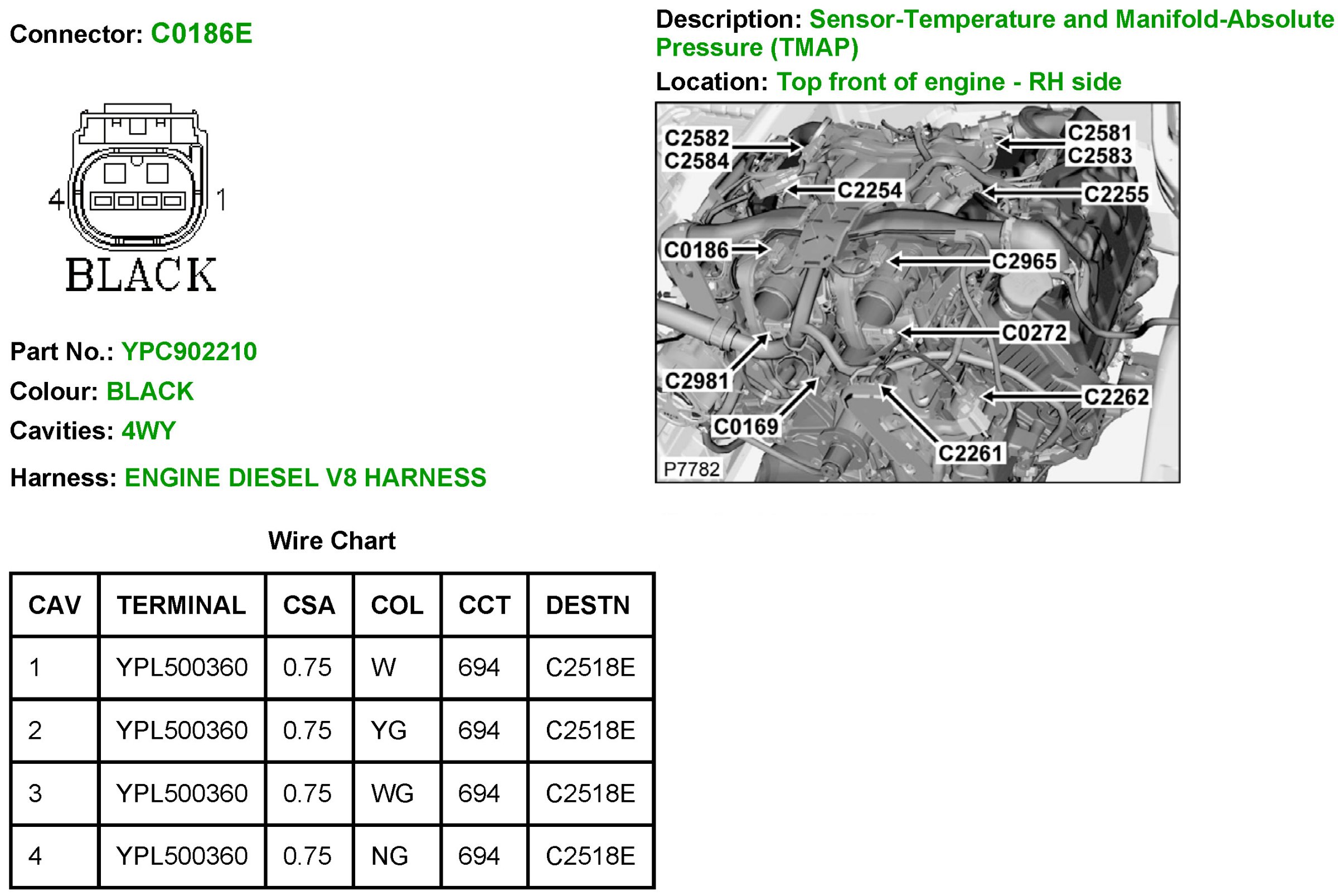

C0186E:



C2965E:

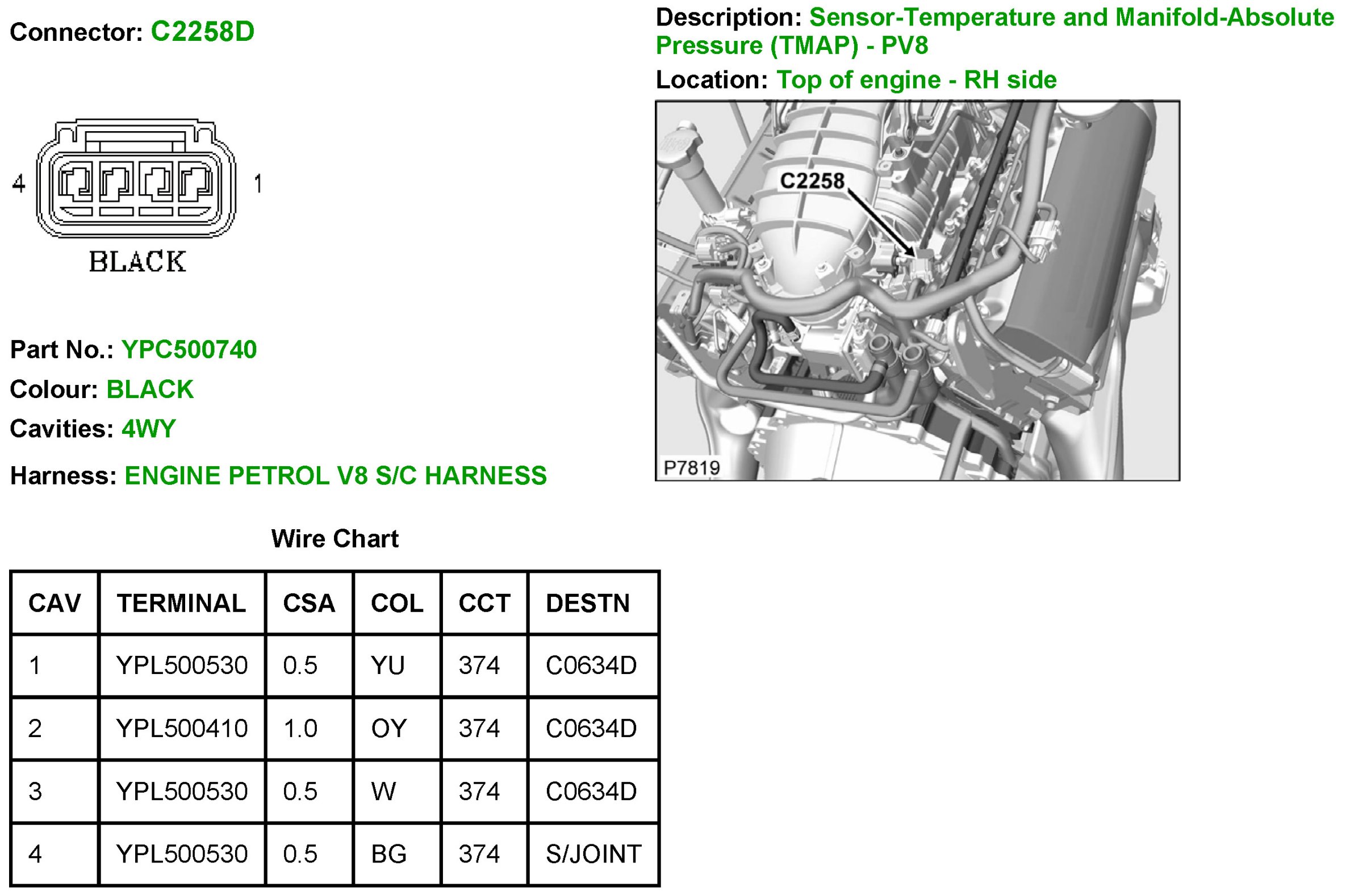

C2258D:
