Lamp Control Module: Service and Repair



Lamp Outage Module

Removal
1. Remove the RH cowl side trim panel.

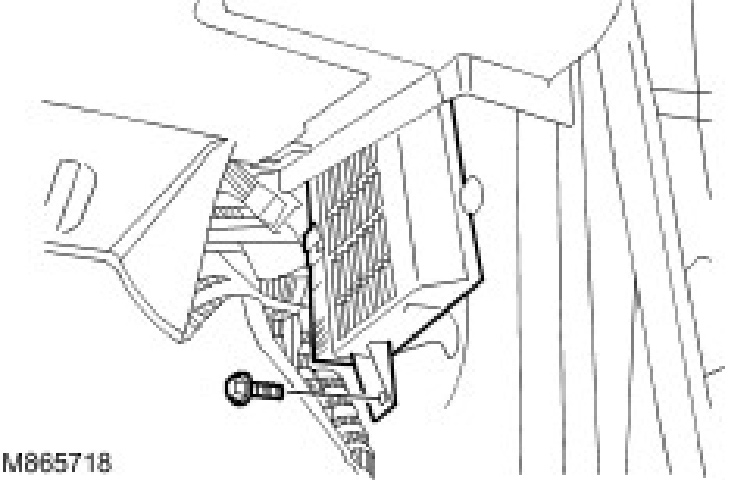

2. Release the lamp outage module.
^ Remove the bolt.





3. Remove the lamp outage module.
^ Disconnect the 3 electrical connectors.





Installation
1. Install the lamp outage module.
^ Connect the electrical connectors.
^ Install the bolt.
2. Install the RH cowl side trim panel.
