Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System
NOTE:
X = Service repair cut point

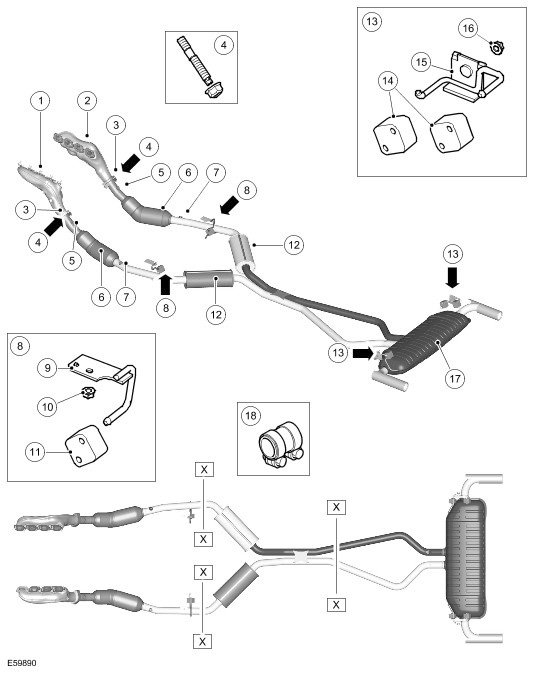

4.2L V8 SUPERCHARGED EXHAUST SYSTEM COMPONENT LAYOUT (PART 1):
4.2L V8 SUPERCHARGED EXHAUST SYSTEM COMPONENT LAYOUT (PART 2):
