Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Control Module >> ECU-Rear Screen-Wiper

ECU-Rear Screen-Wiper

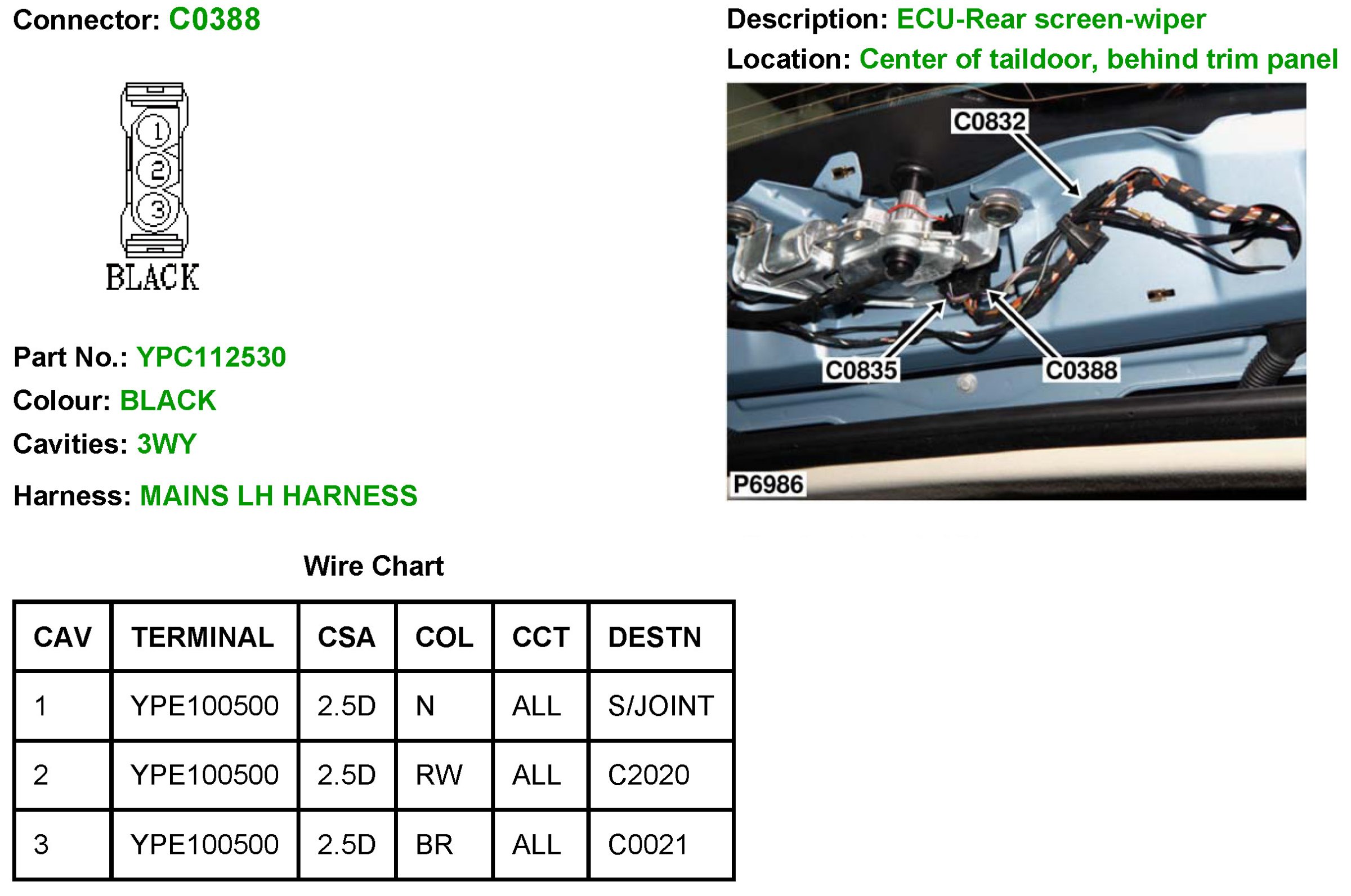

C0388:

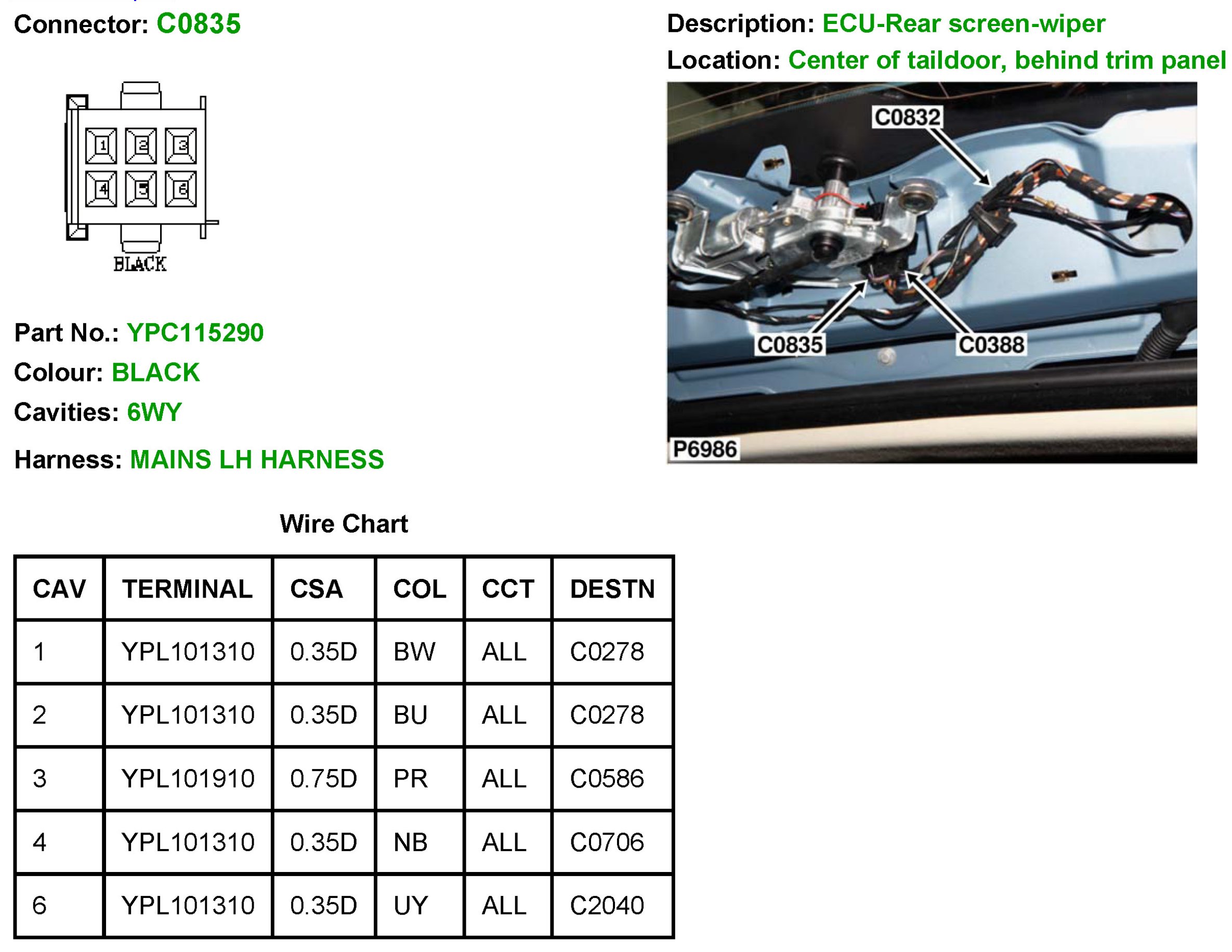

C0835:
