Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ultrasonic Sensor, Antitheft >> Sensor-Volumetric

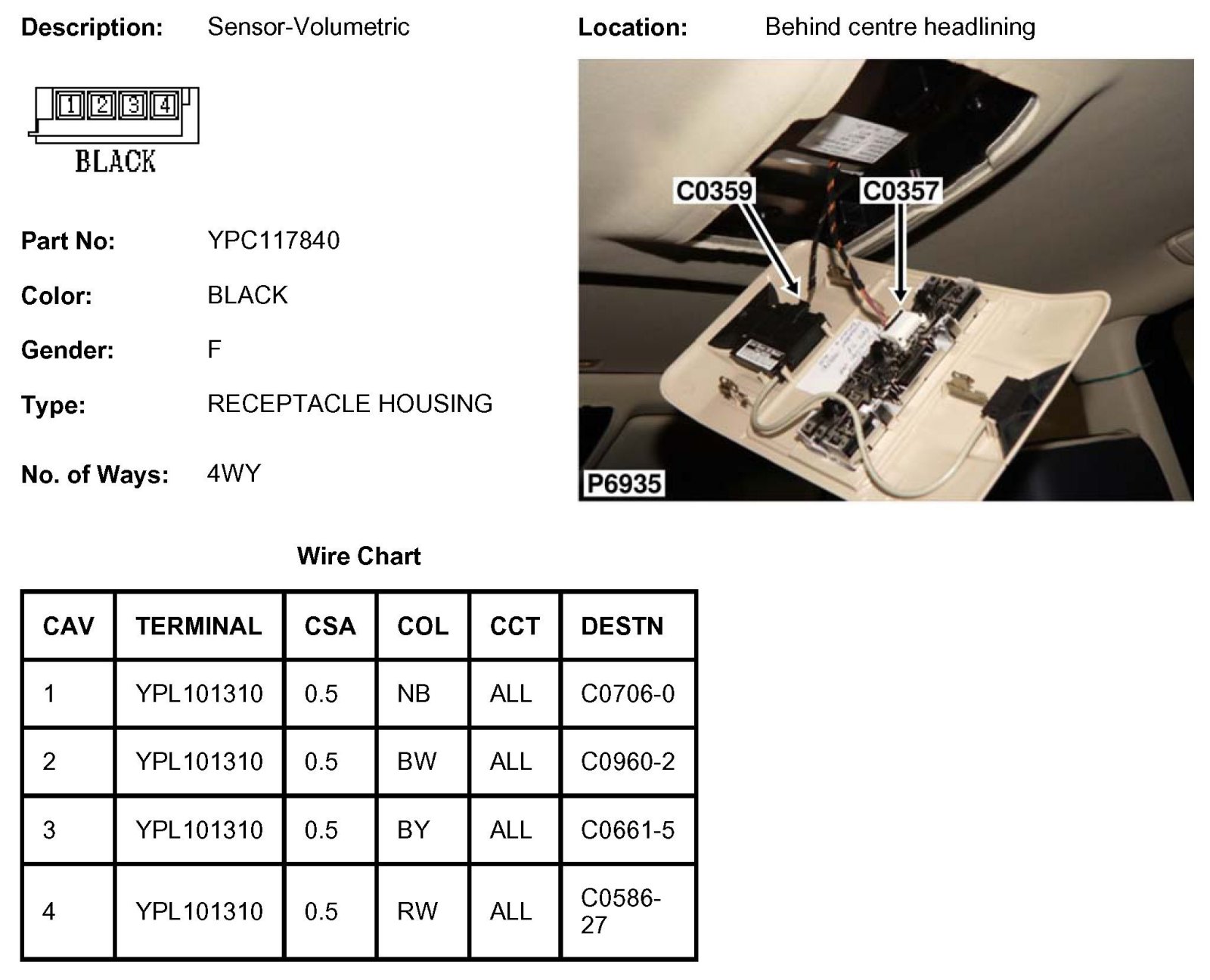

Sensor-Volumetric

C0359:
