Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Module

Tire Pressure Module

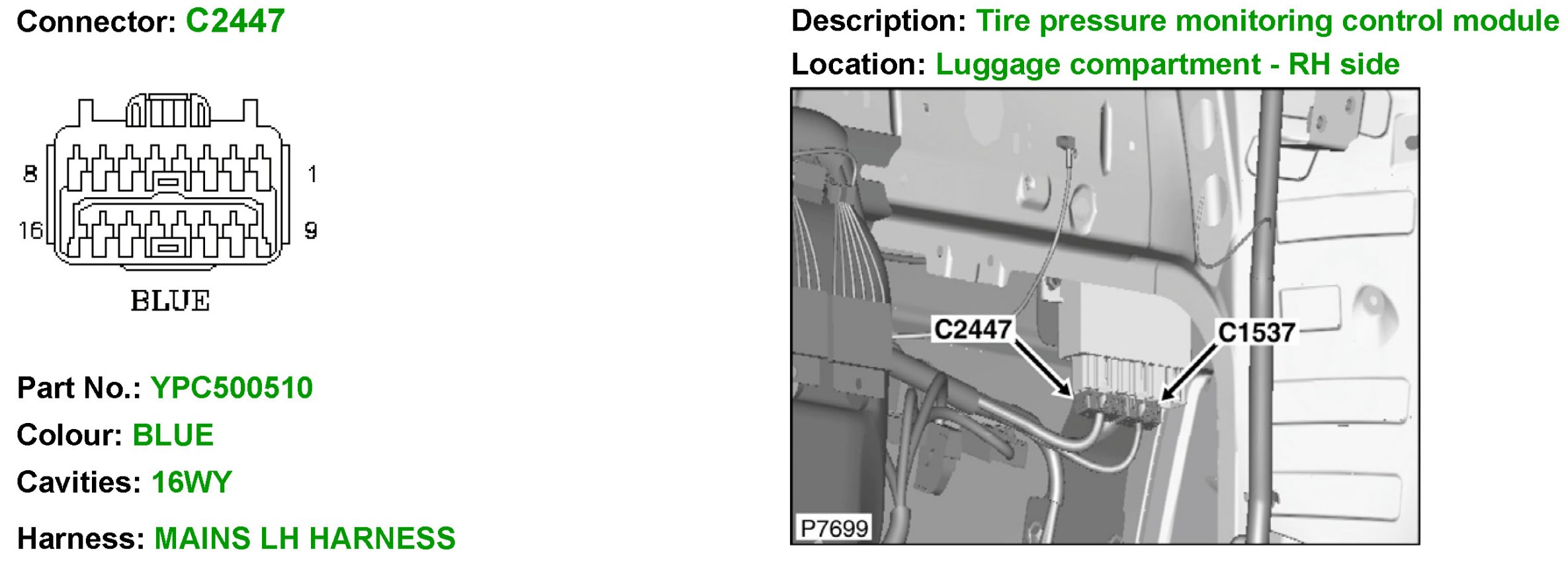

C2447 (Part 1):



C2447 (Part 2):

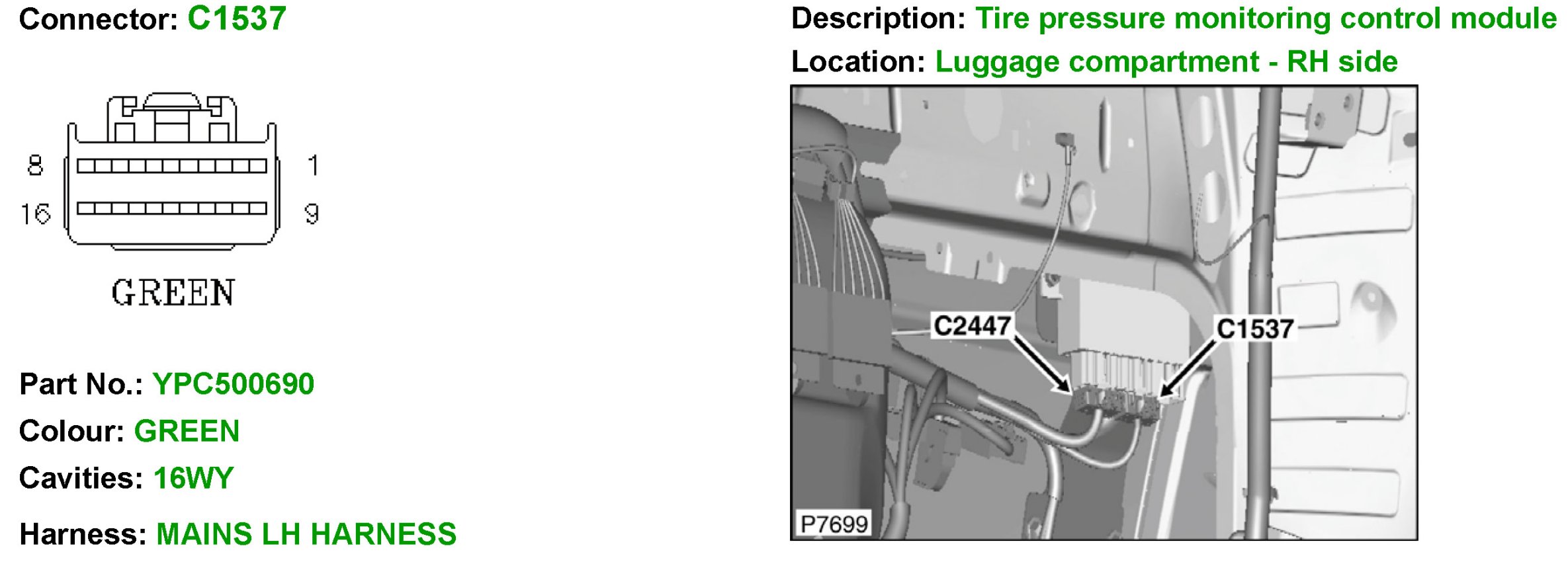

C1537 (Part 1):



C1537 (Part 2):
