Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

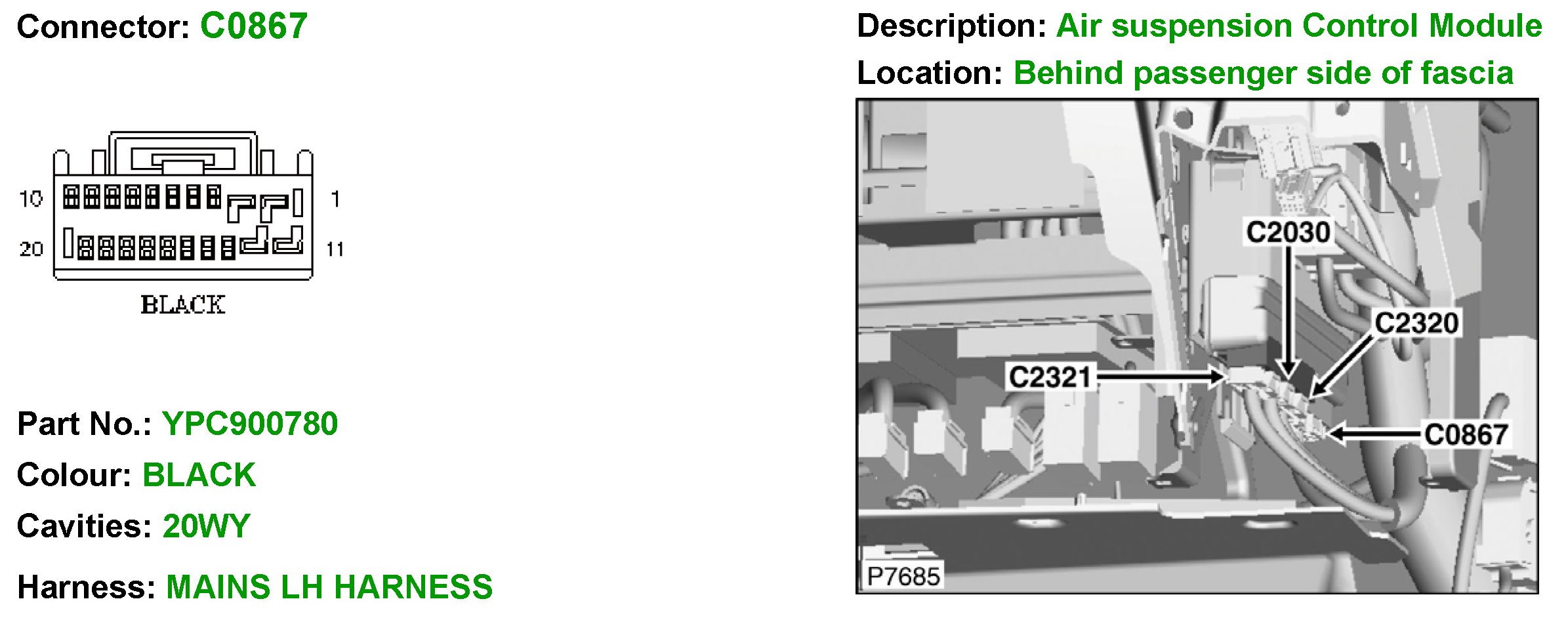

C0867 (Part 1):



C0867 (Part 2):



C2030 (Part 1):



C2030 (Part 1):

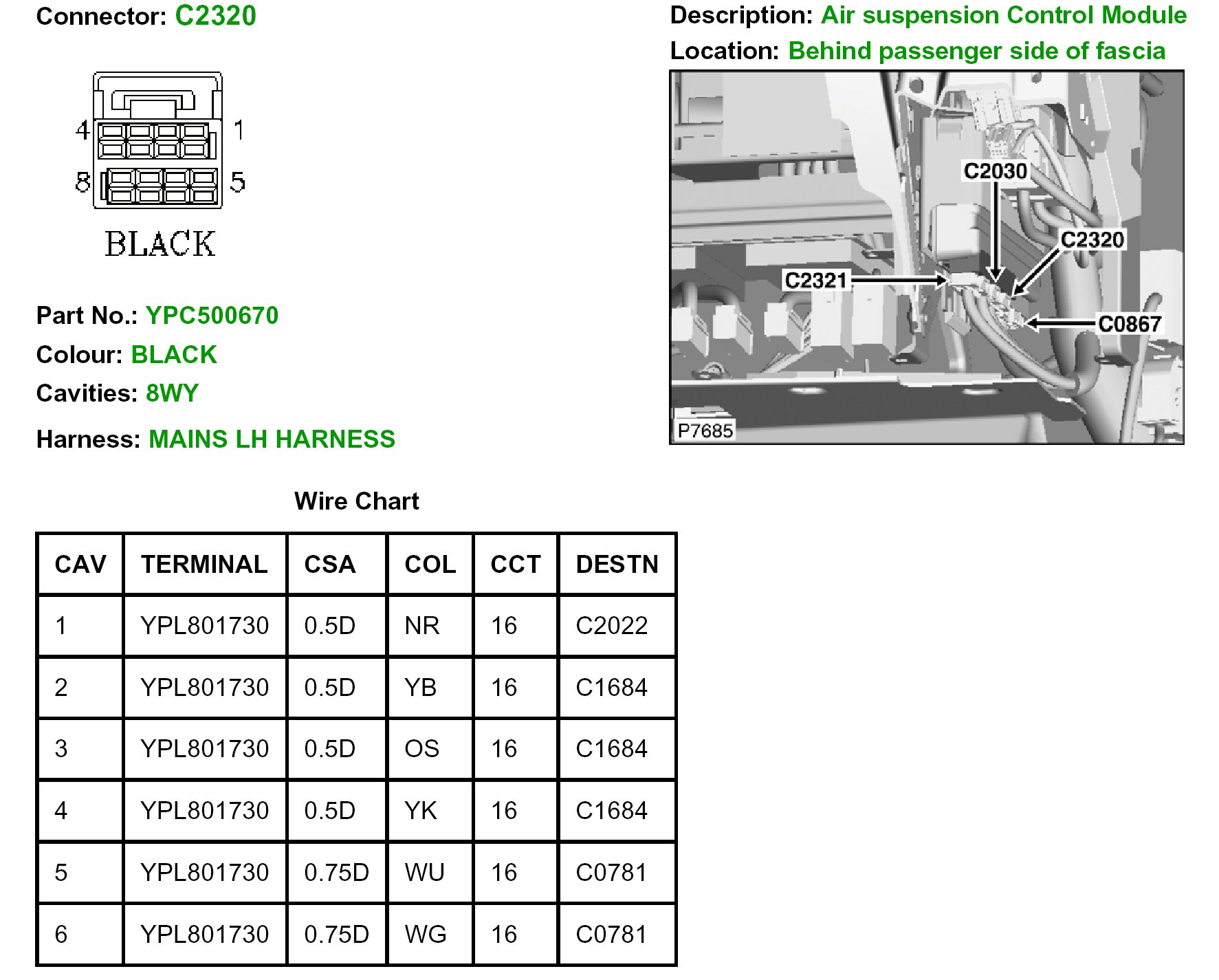

C2320:



C2321 (Part 1):



C2321 (Part 2):
