Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ride Height Sensor, Suspension Control >> Sensor-Height-Rear-LH

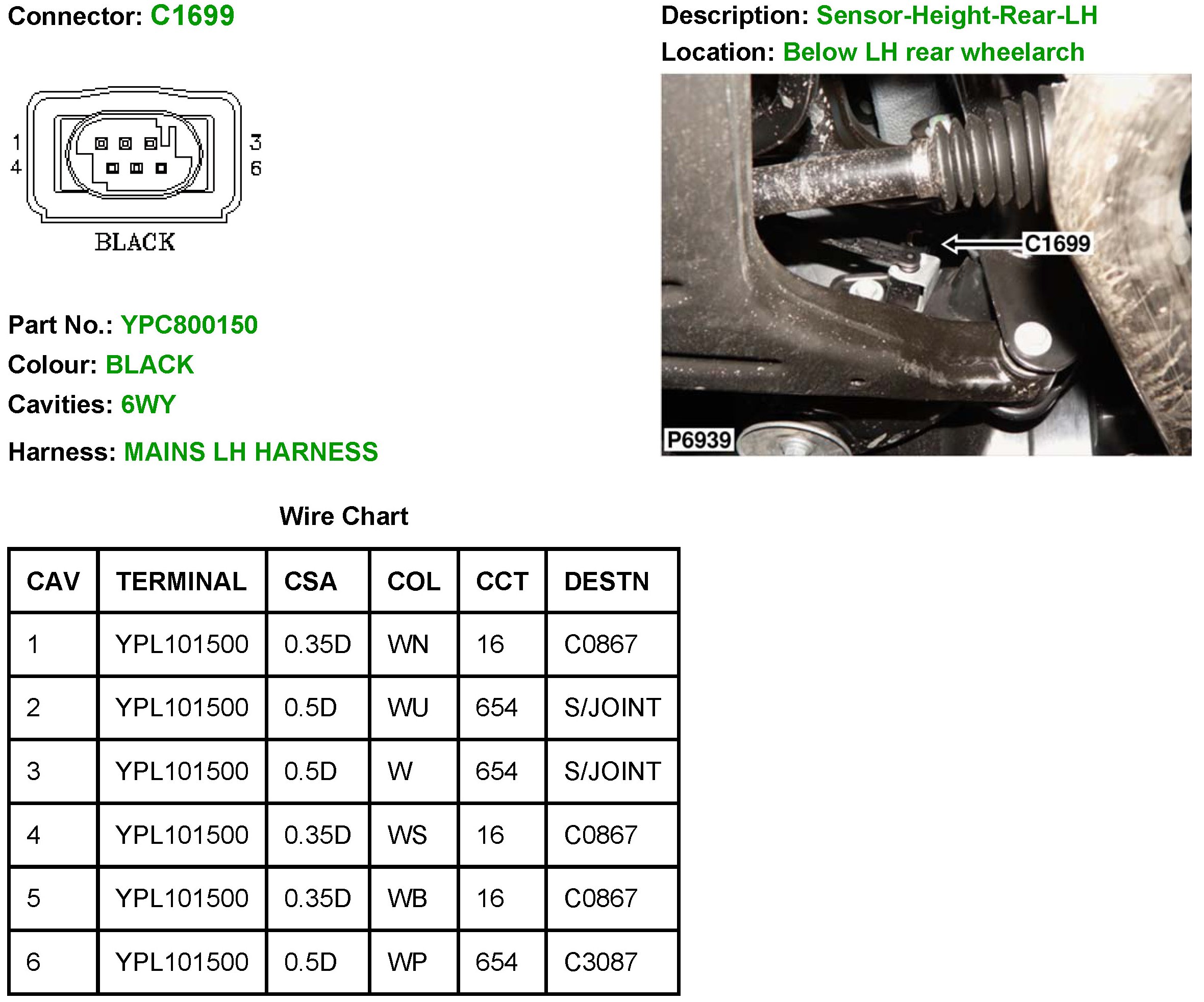

Sensor-Height-Rear-LH

C1699:
