Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Brake Control Module

Parking Brake Control Module

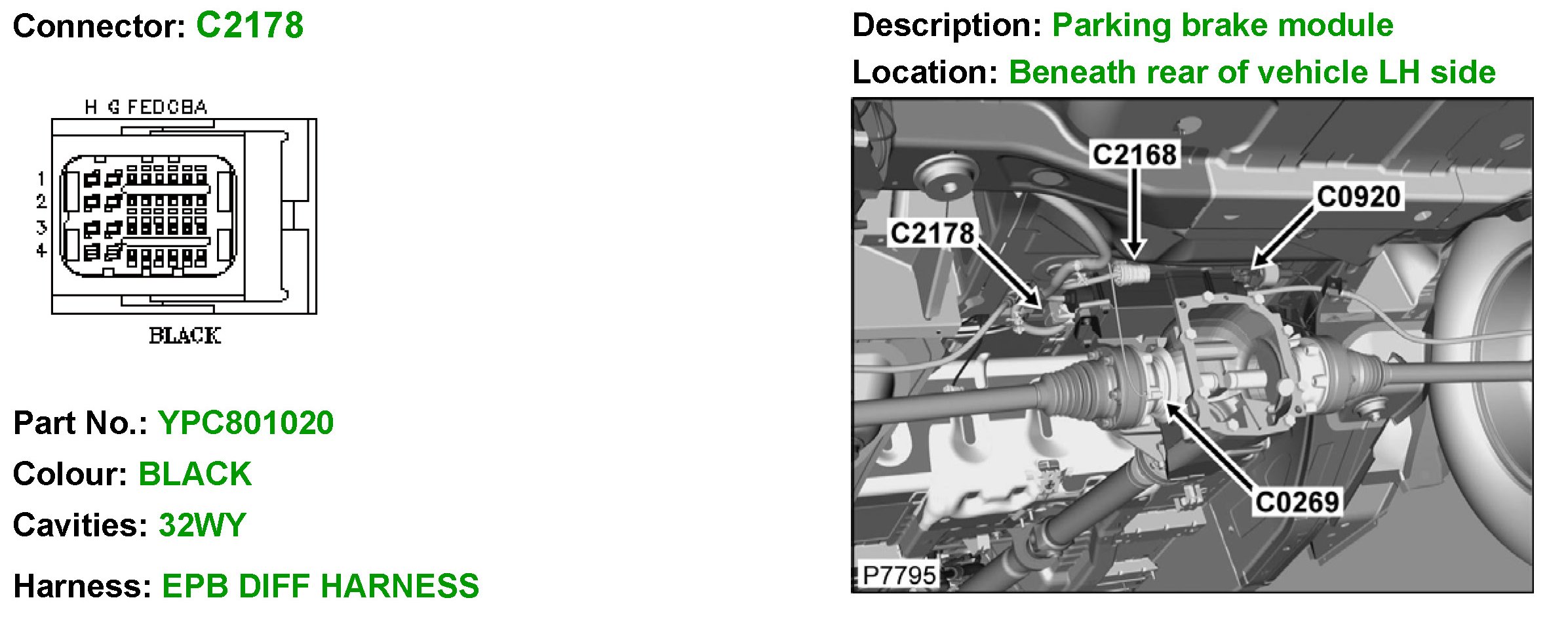

C2178 (Part 1):



C2178 (Part 2):
