Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Distance Sensor >> Parking Aid Sensor-Inner-Rear-RH

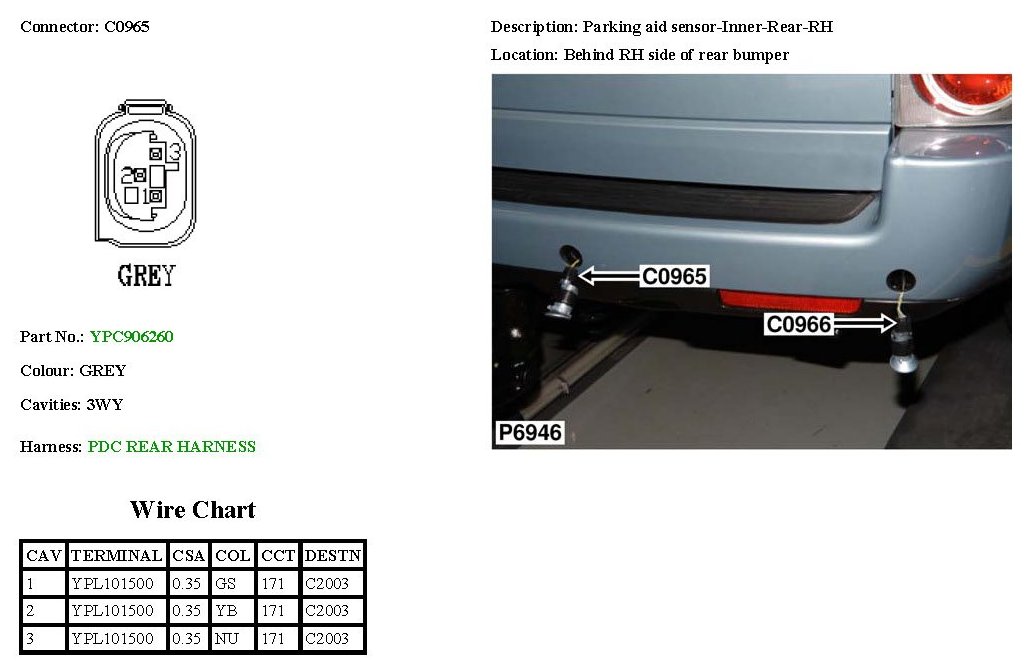

Parking Aid Sensor-Inner-Rear-RH

C0965:
