Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module

Parking Assist Control Module

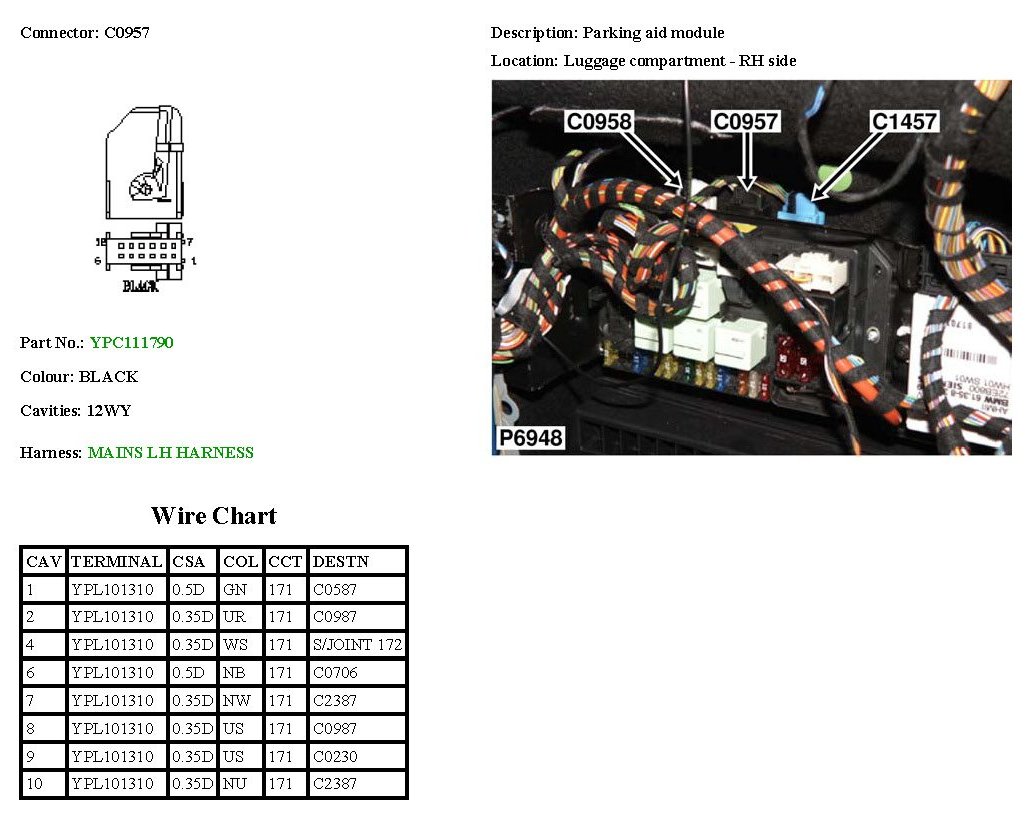

C0957:

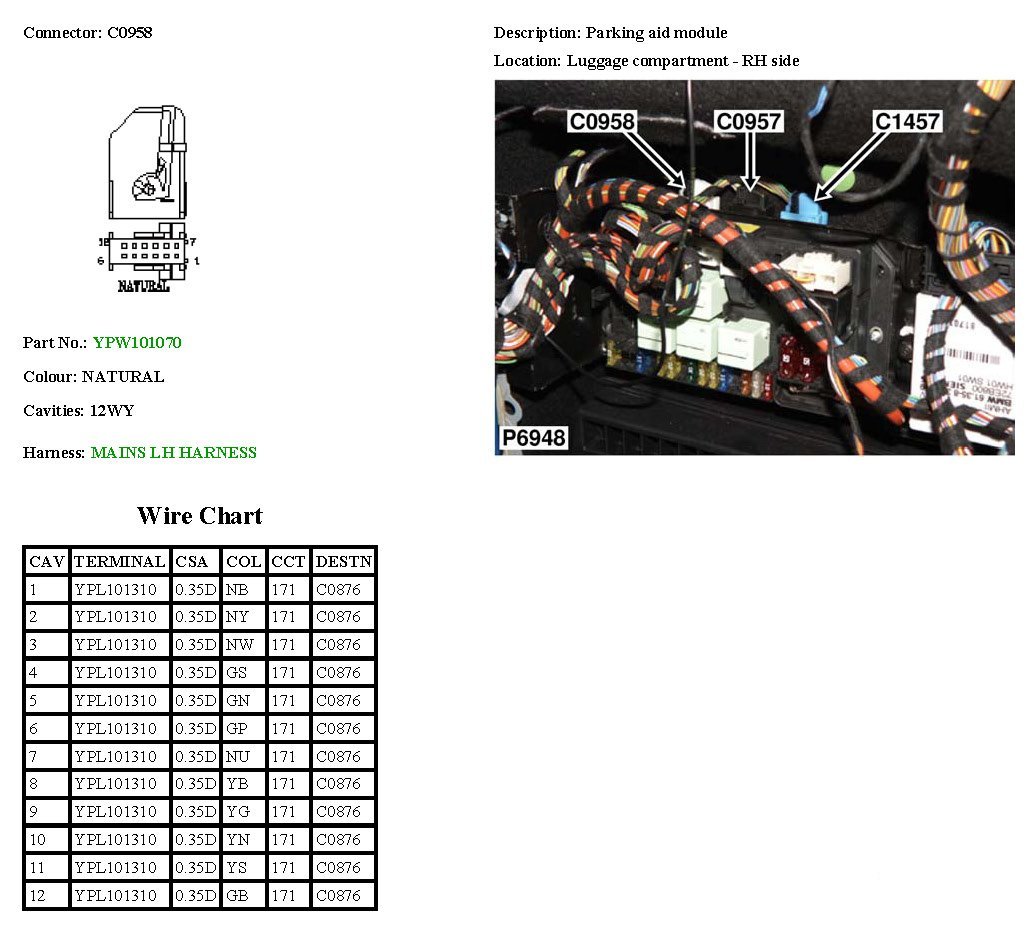

C0958:

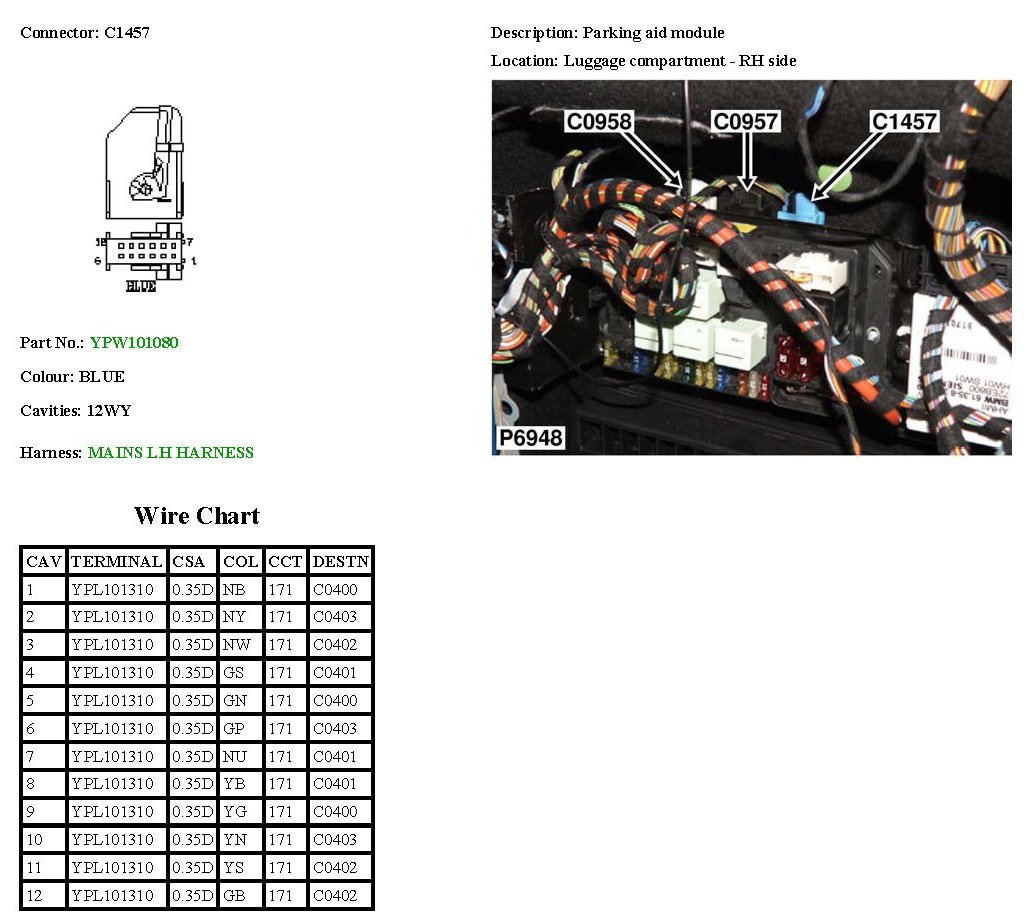

C1457:
