Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> Switch-Steering Column-Lighting

Switch-Steering Column-Lighting

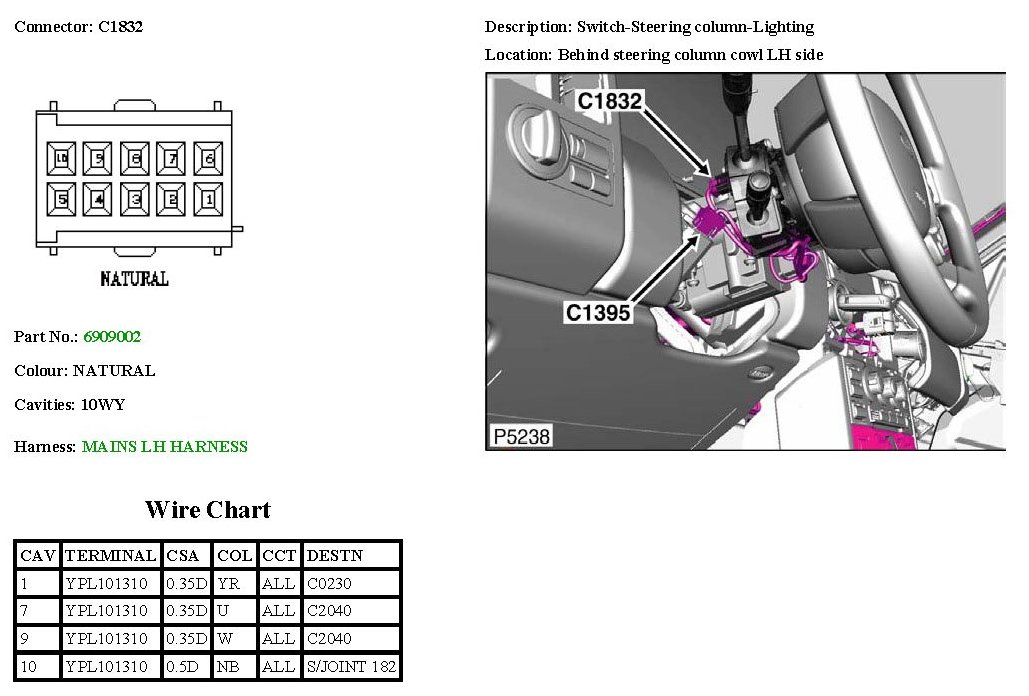

C1832:
