Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
>>
Motor-Wiper-Rear Screen
Motor-Wiper-Rear Screen
Motor-Wiper-Rear Screen

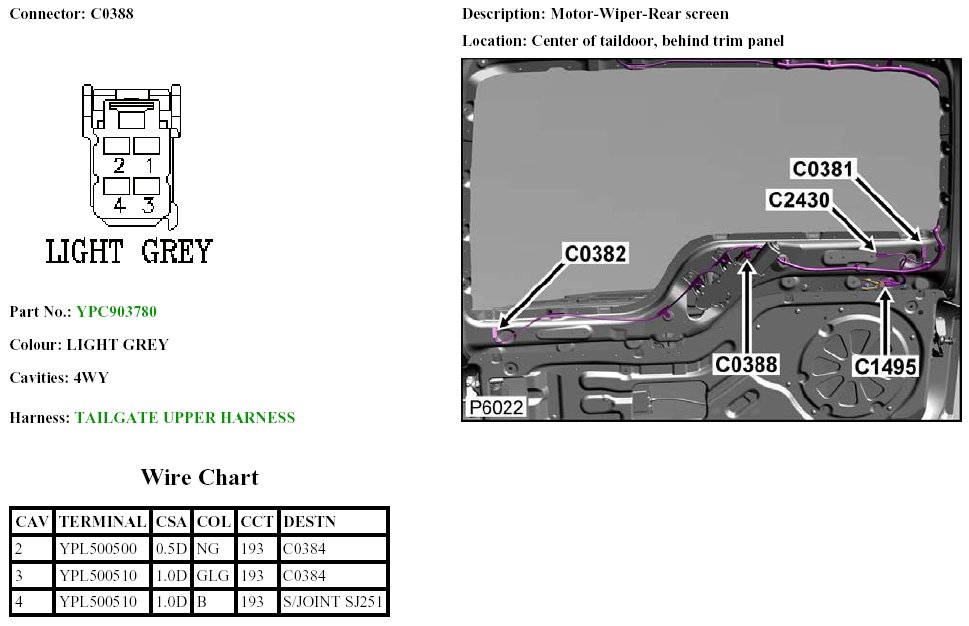

C0388:
