Wheel Speed Sensor
>>
Wheel Speed Sensor-Rear-LH
Wheel Speed Sensor-Rear-LH
Wheel Speed Sensor-Rear-LH

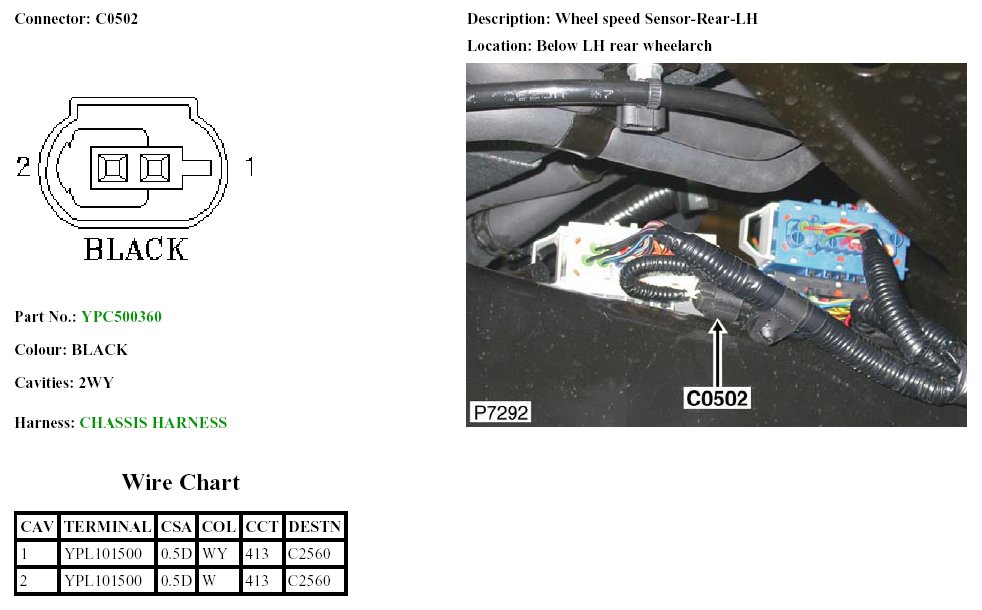

C0502:
