Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

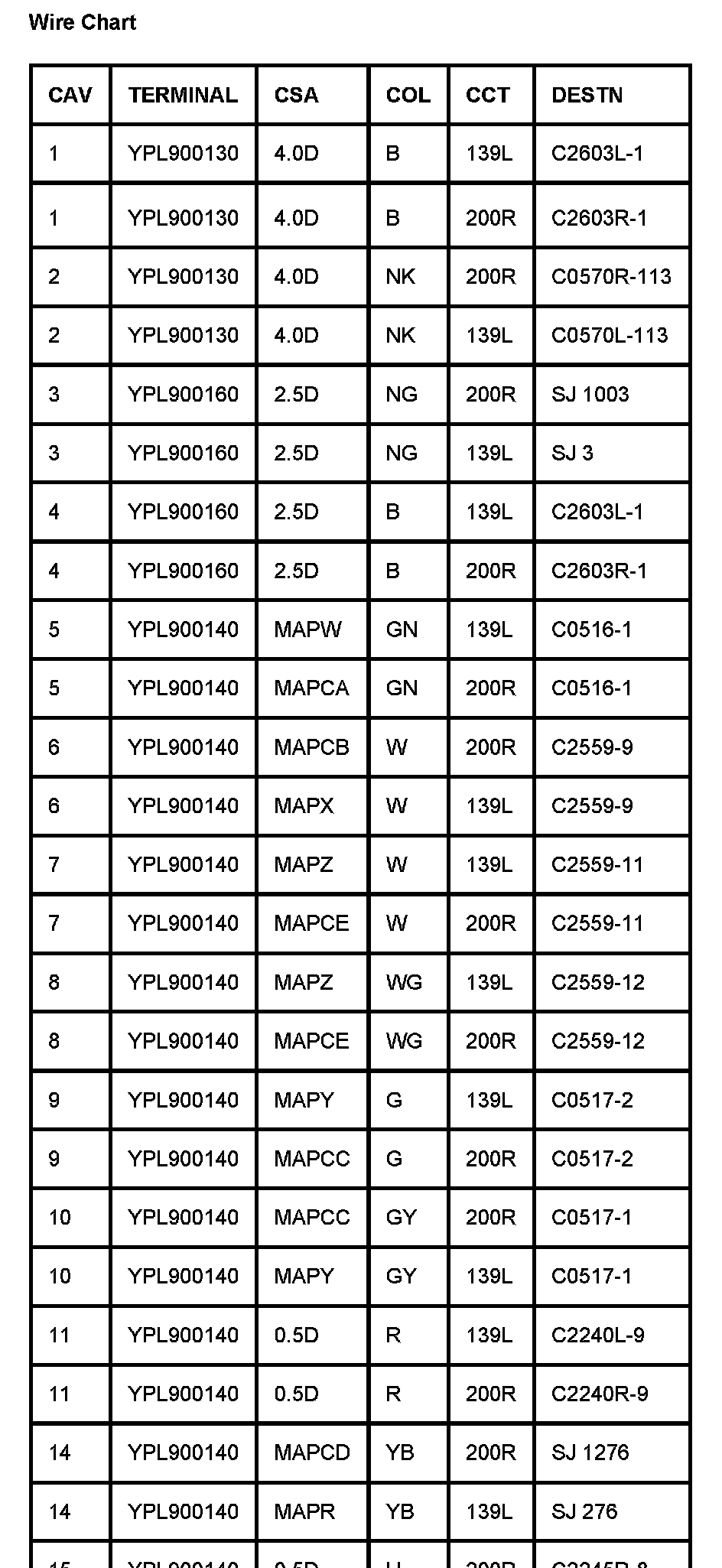

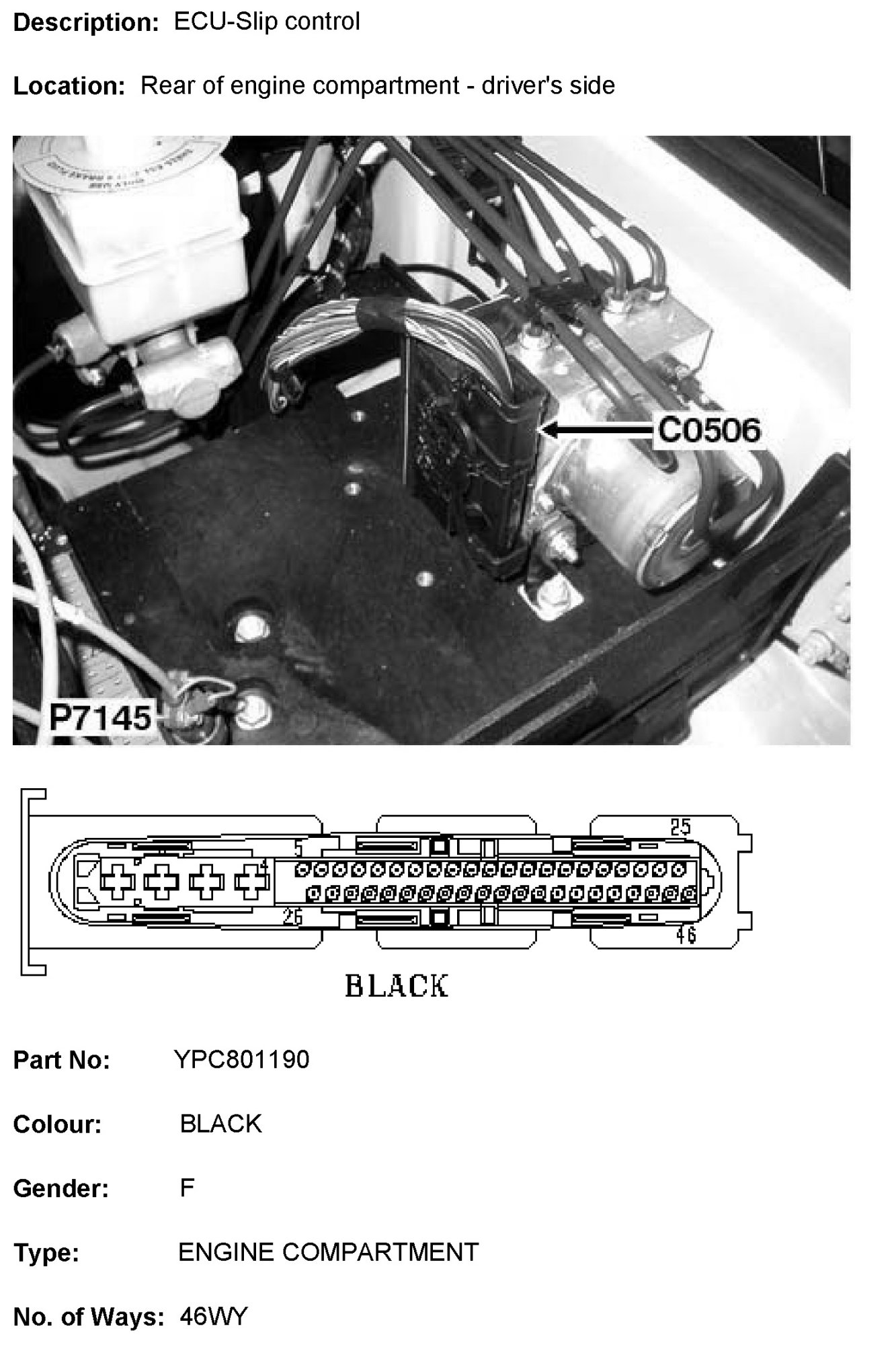

C0506 (Part 1):

b��C0506 (Part 2):
