Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Module

Tire Pressure Module

Module-Tire Pressure Monitoring System

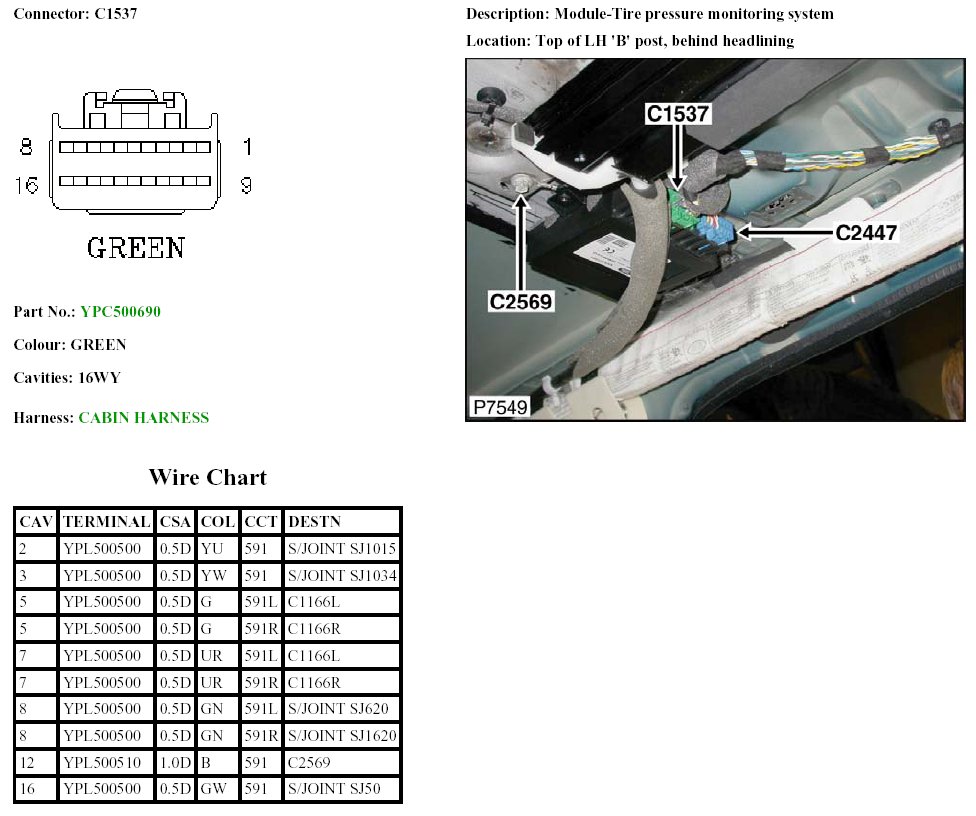

C1537:

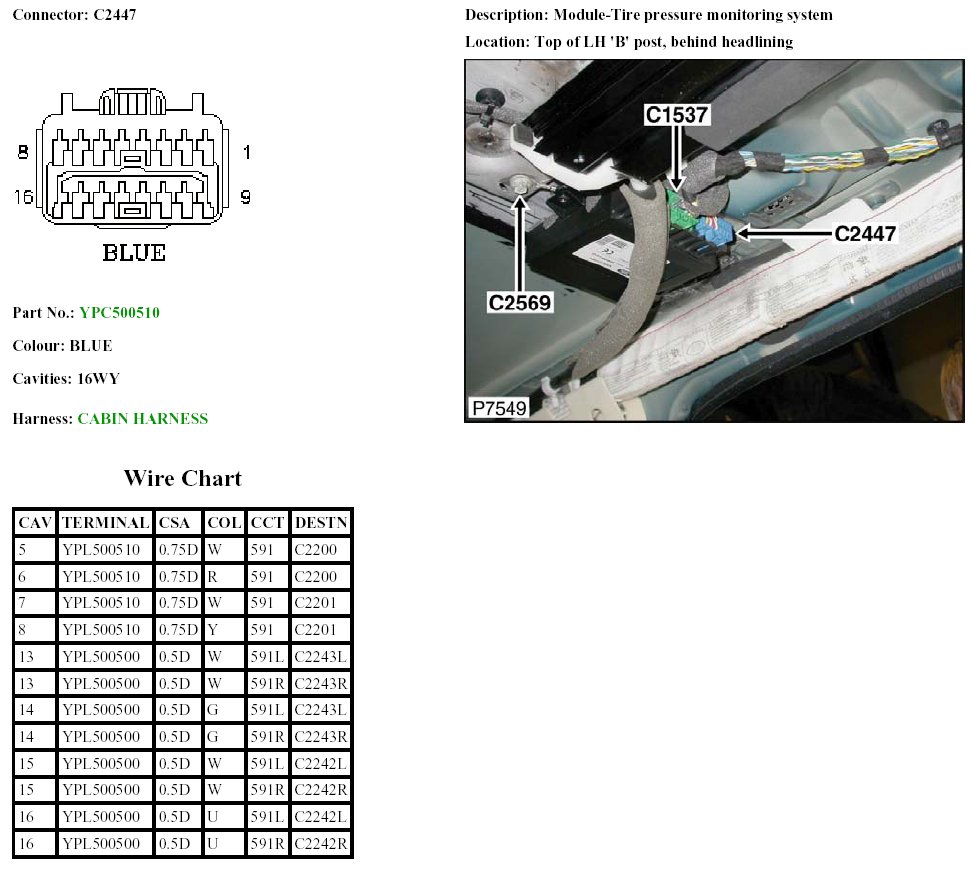

C2447:
