Dynamic Response Module

Dynamic Response Module

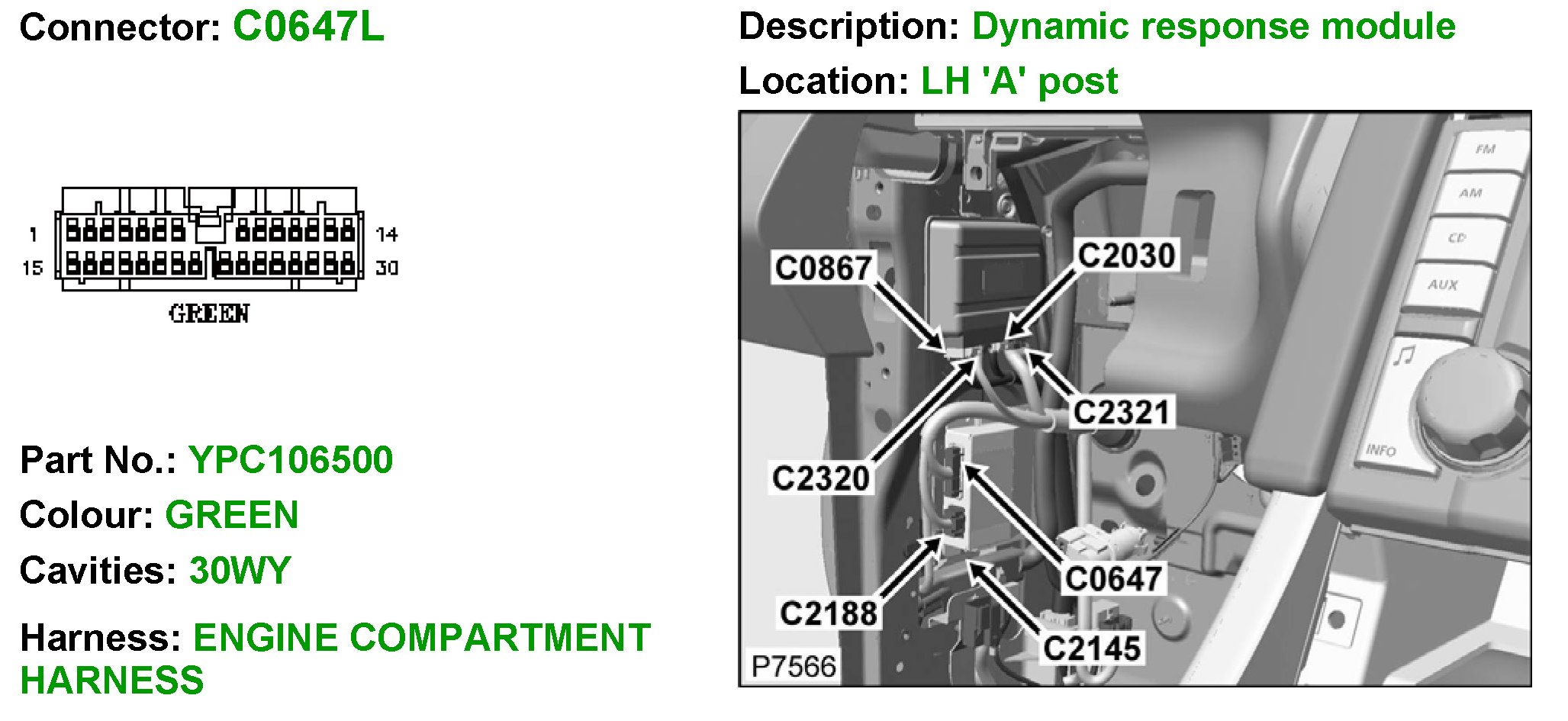

C0647L (Part 1):

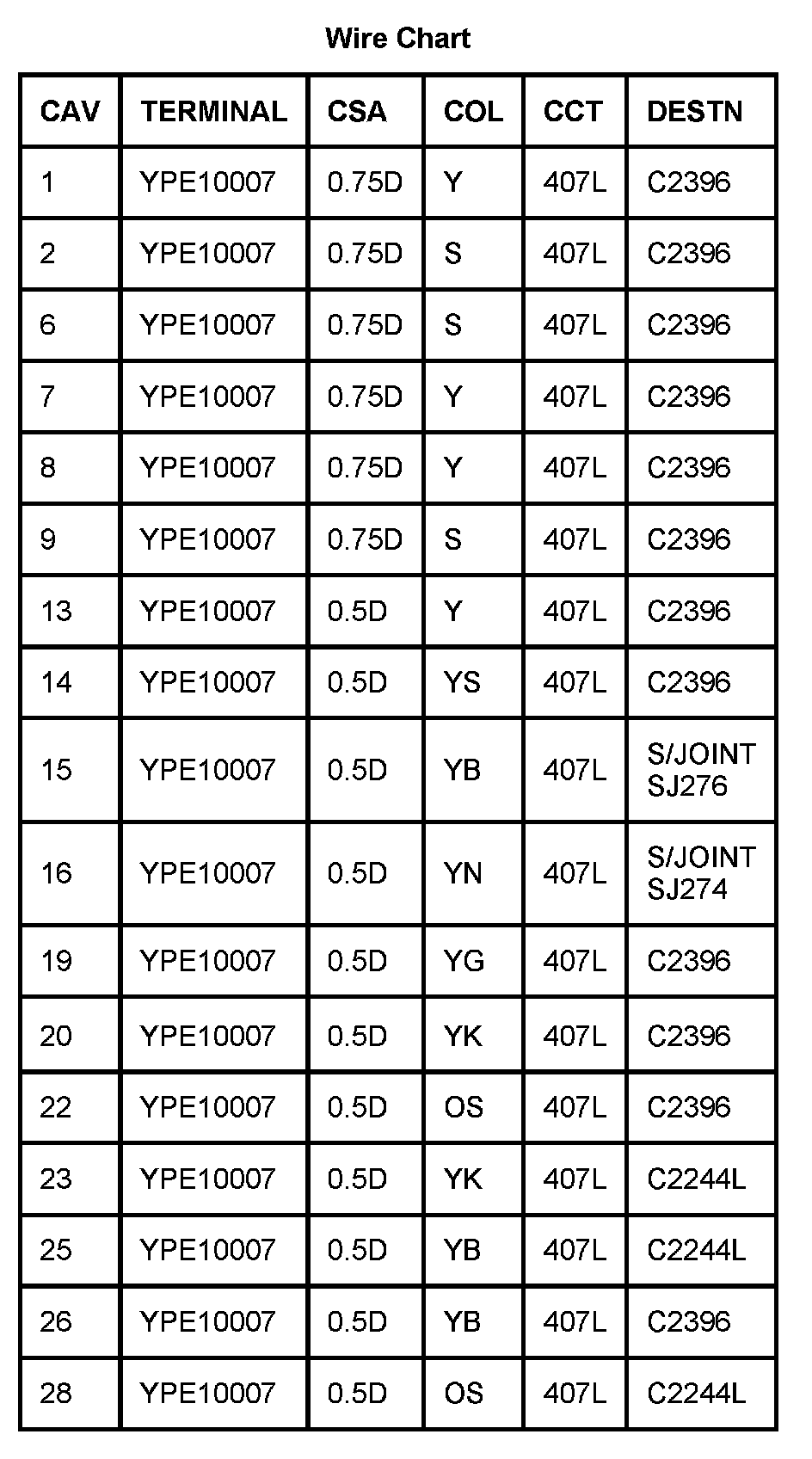

C0647L (Part 2):

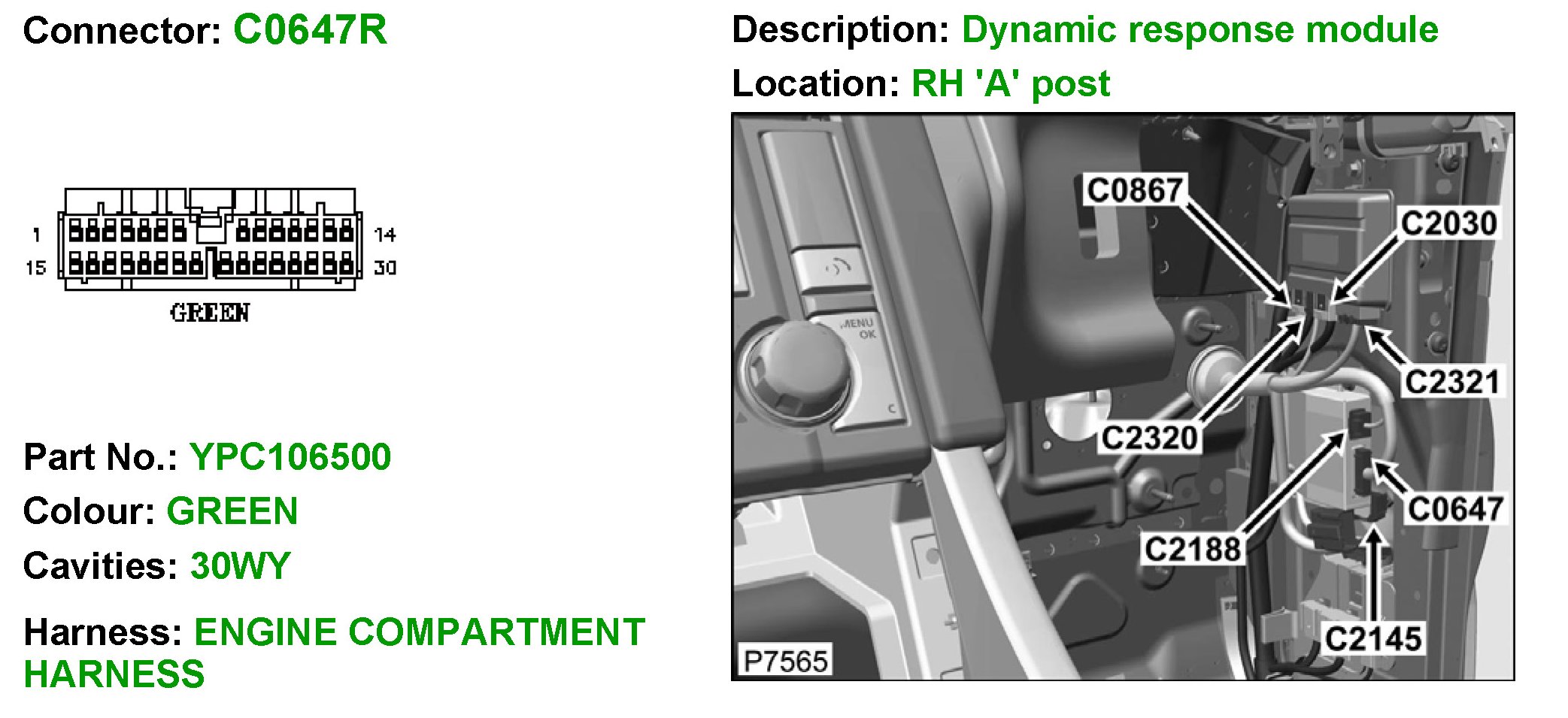

C0647R (Part 1):

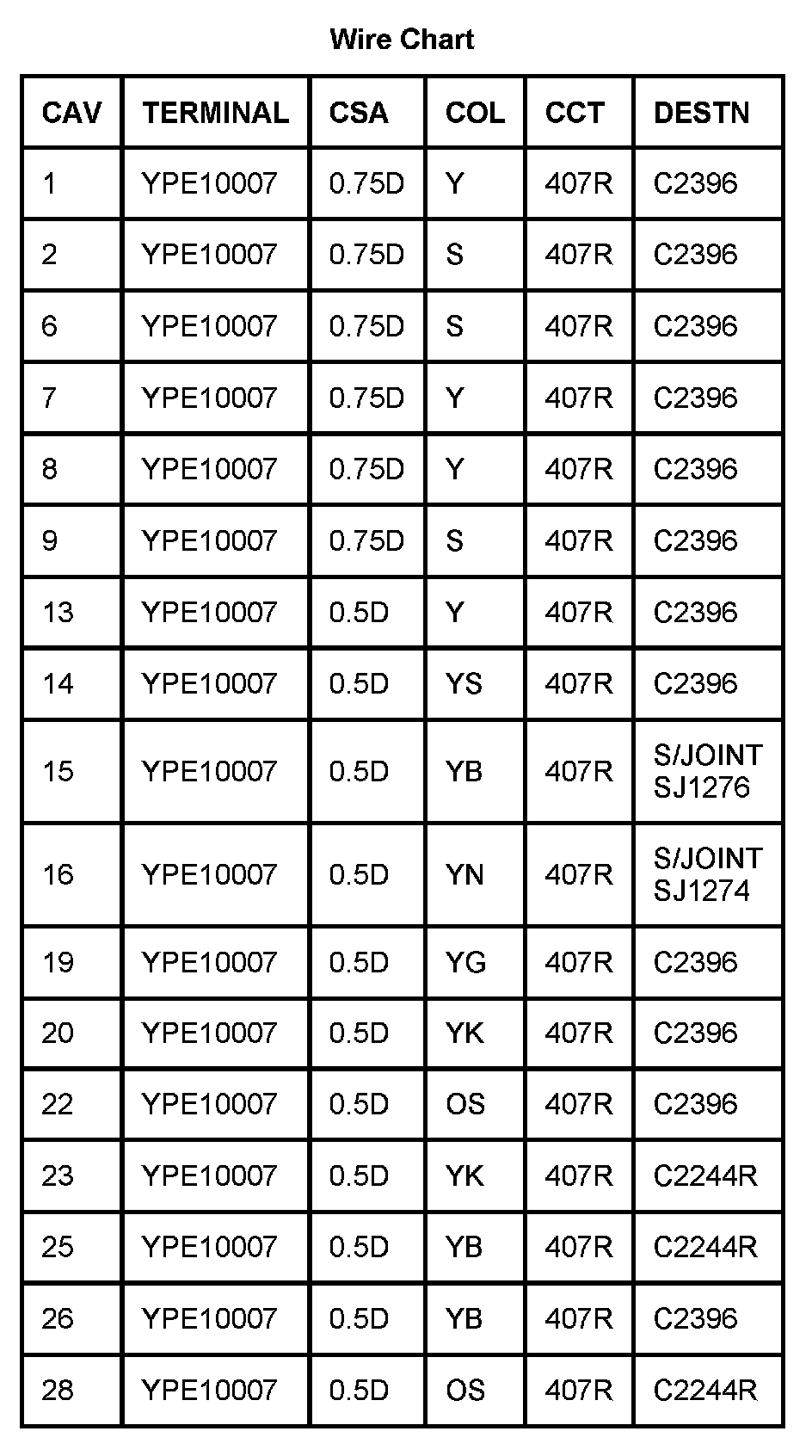

C0647R (Part 2):
