Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column Control Module

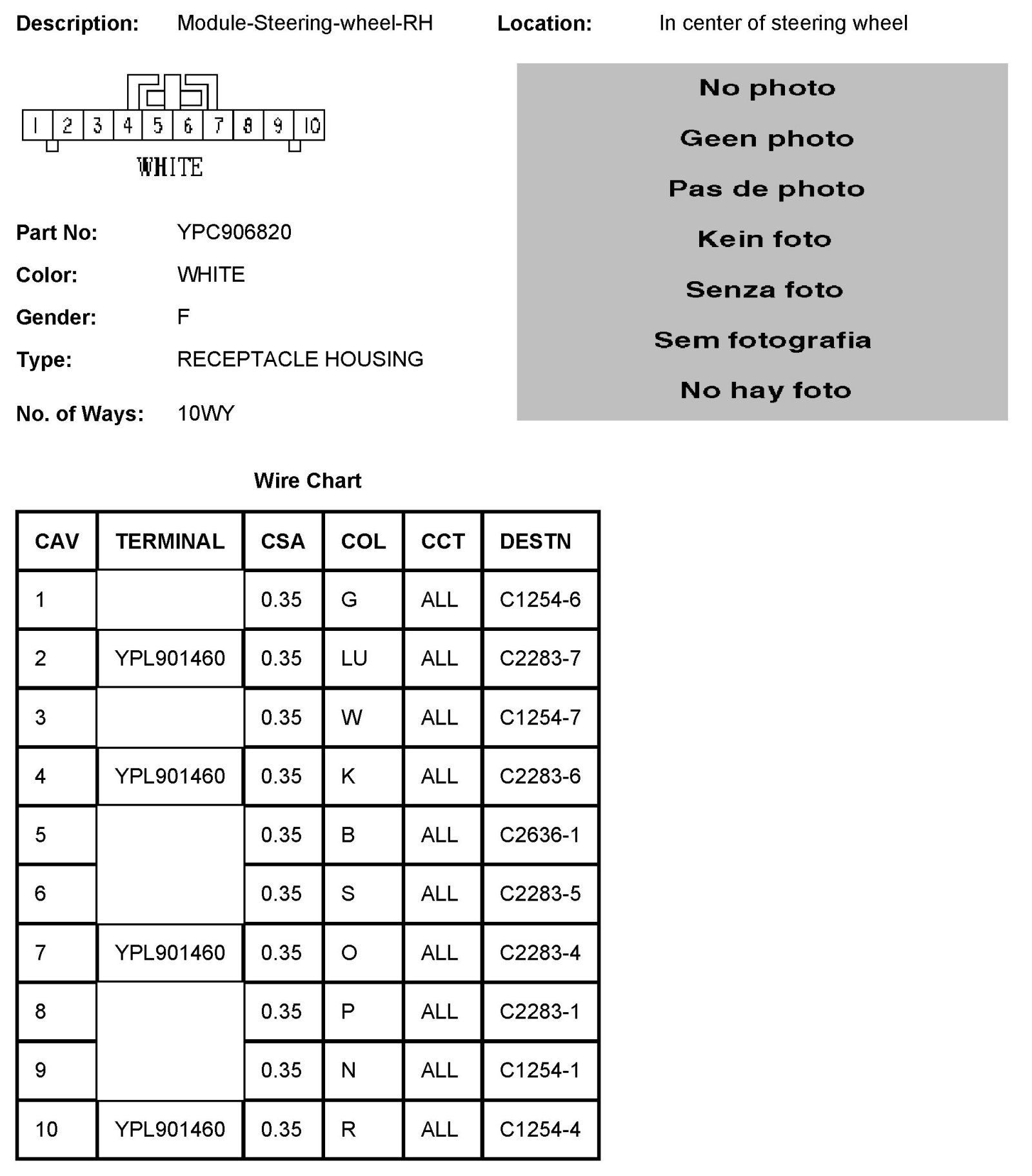

Steering Column Control Module

C2147:
