Seat Temperature Control Module
>>
RH Rear Seat Heater Module
RH Rear Seat Heater Module
RH Rear Seat Heater Module

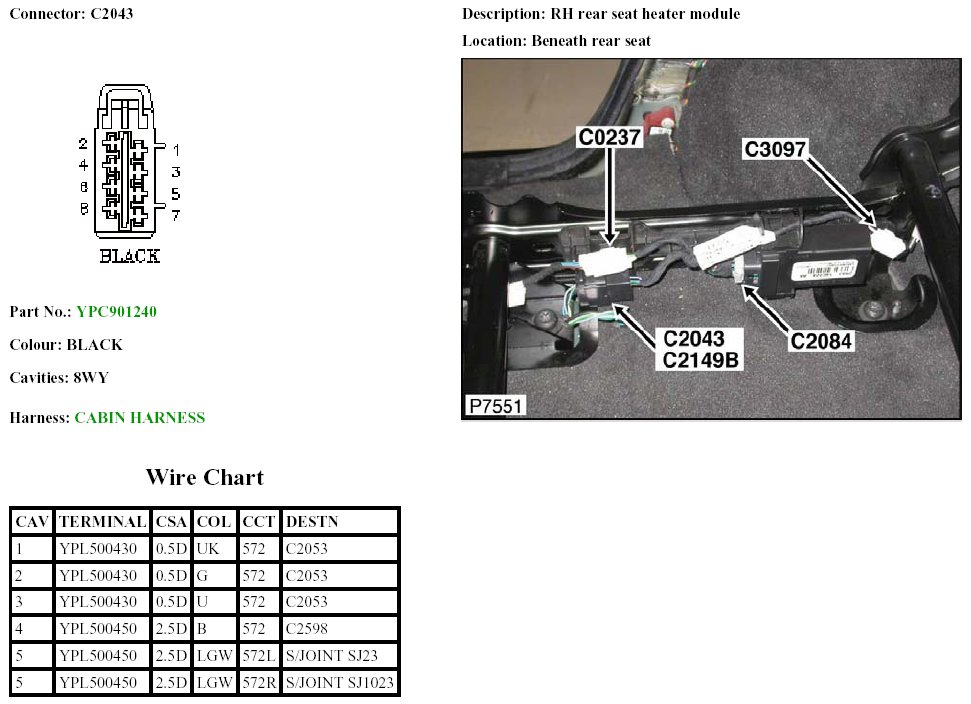

C2043:
