Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Distance Sensor >> Parking Aid Sensor-Inner-Rear-LH

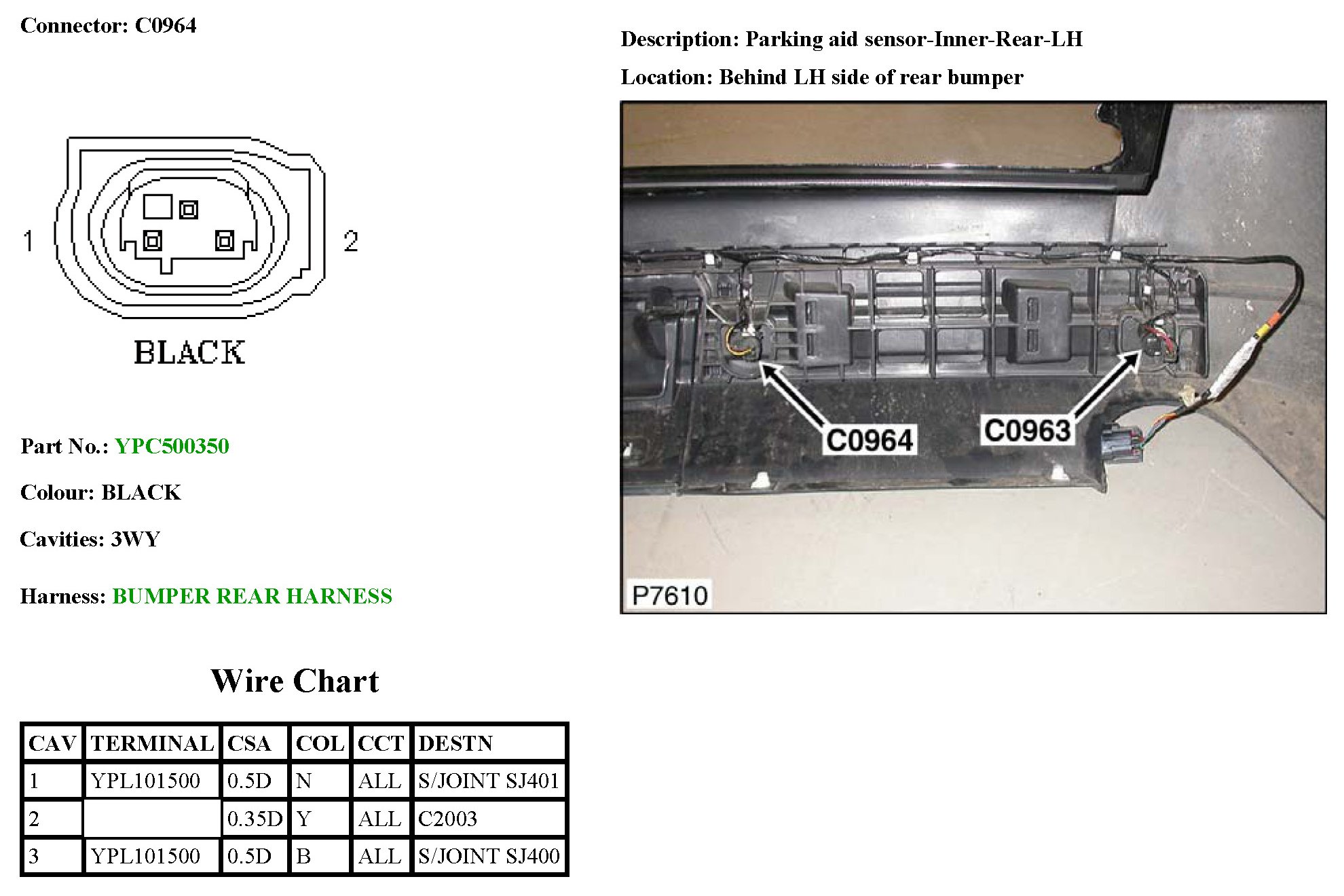

Parking Aid Sensor-Inner-Rear-LH

C0964:
