Integrated Accessory Switch Assembly
>>
Switch Pack-Center-Console
Switch Pack-Center-Console

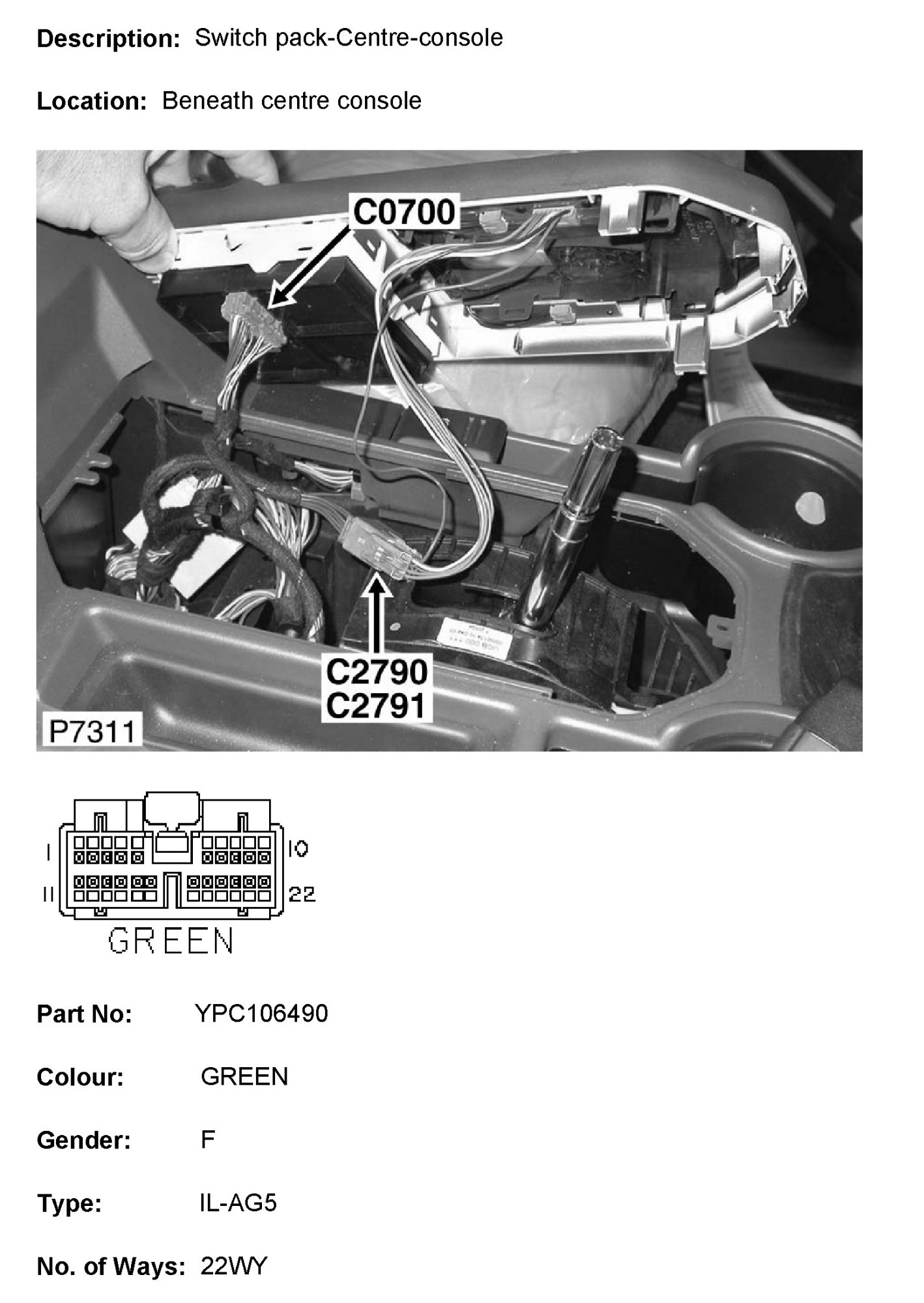

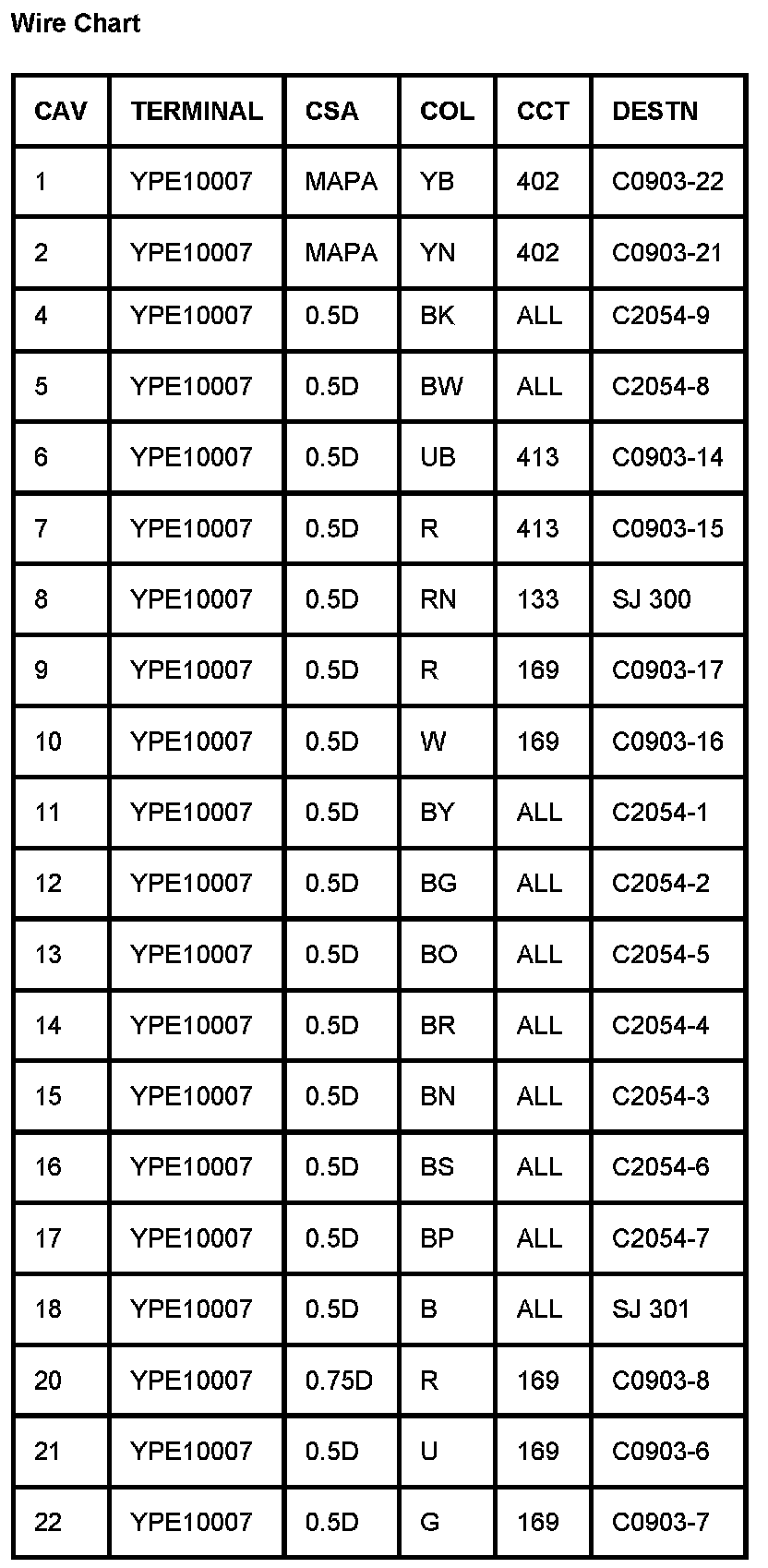

C0700 (Part 1):
C0700 (Part 2):
