Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

ABS Module

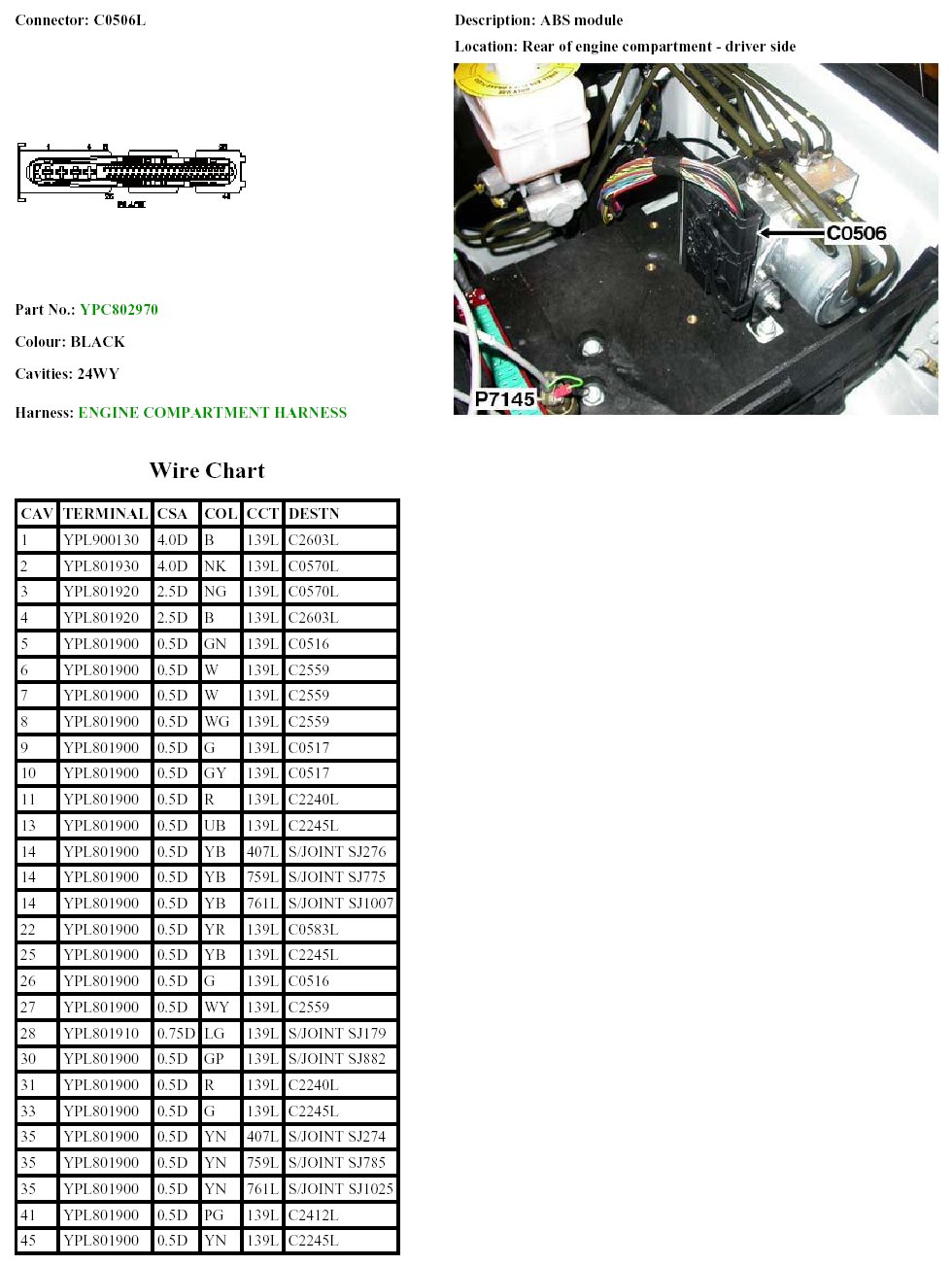

C0506L:

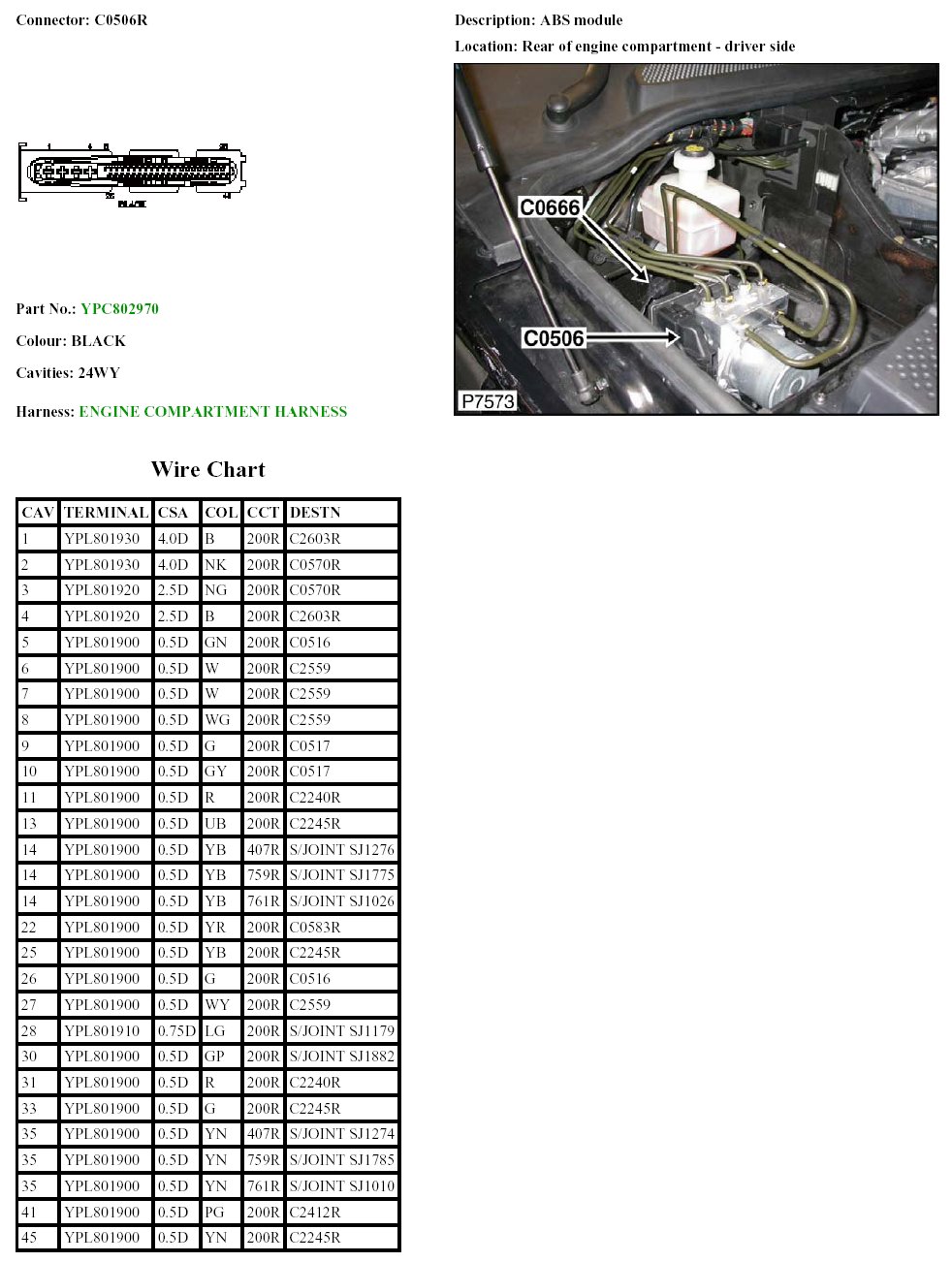

C0506R:
