Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
Control Unit, Differential Lock
Rear Differential Control Module

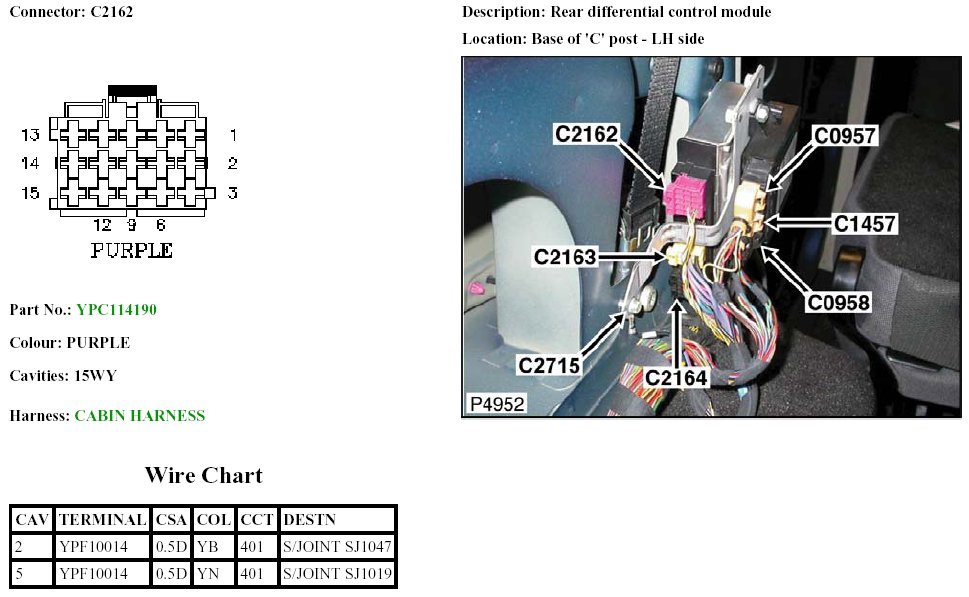

C2162:

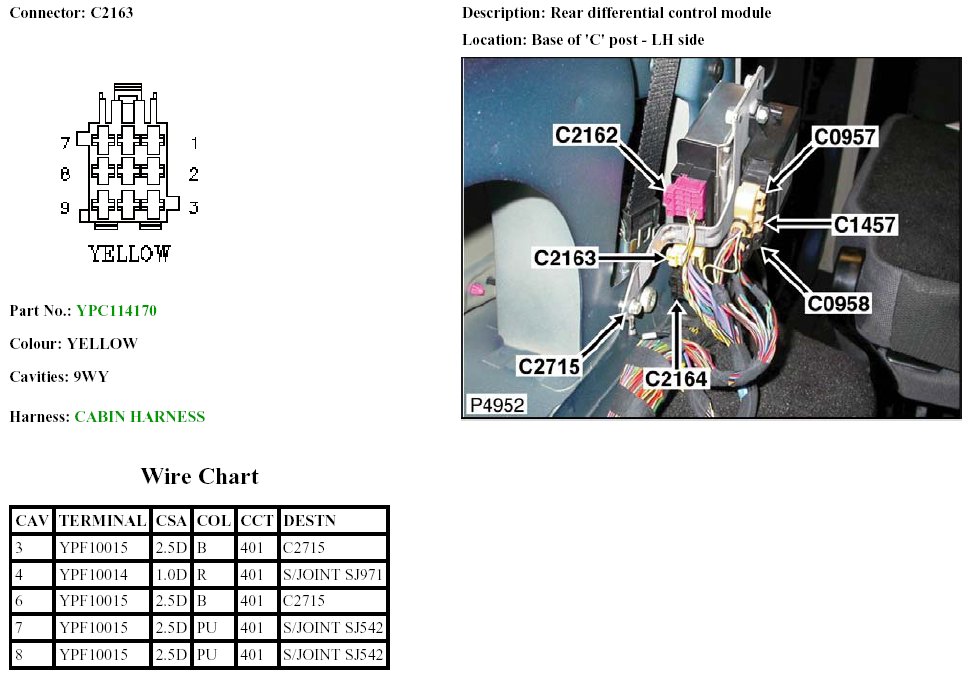

C2163:

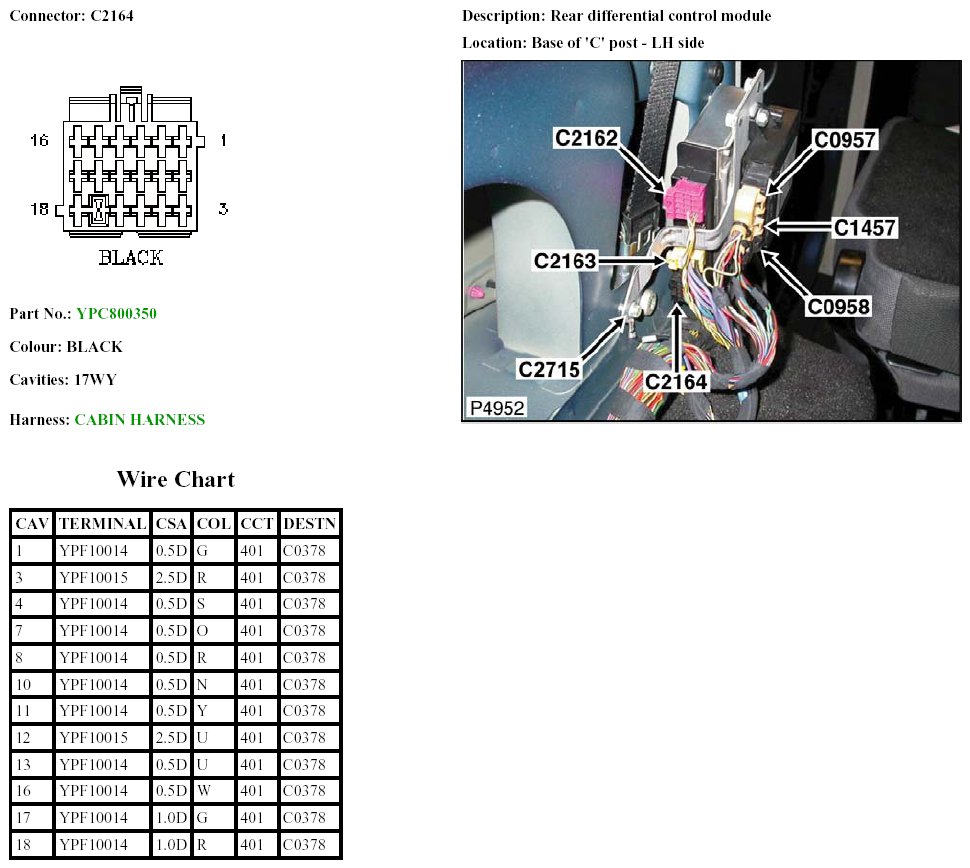

C2164:
