Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Switch-Steering Column-Lighting
Switch-Steering Column-Lighting
Switch-Steering Column-Lighting

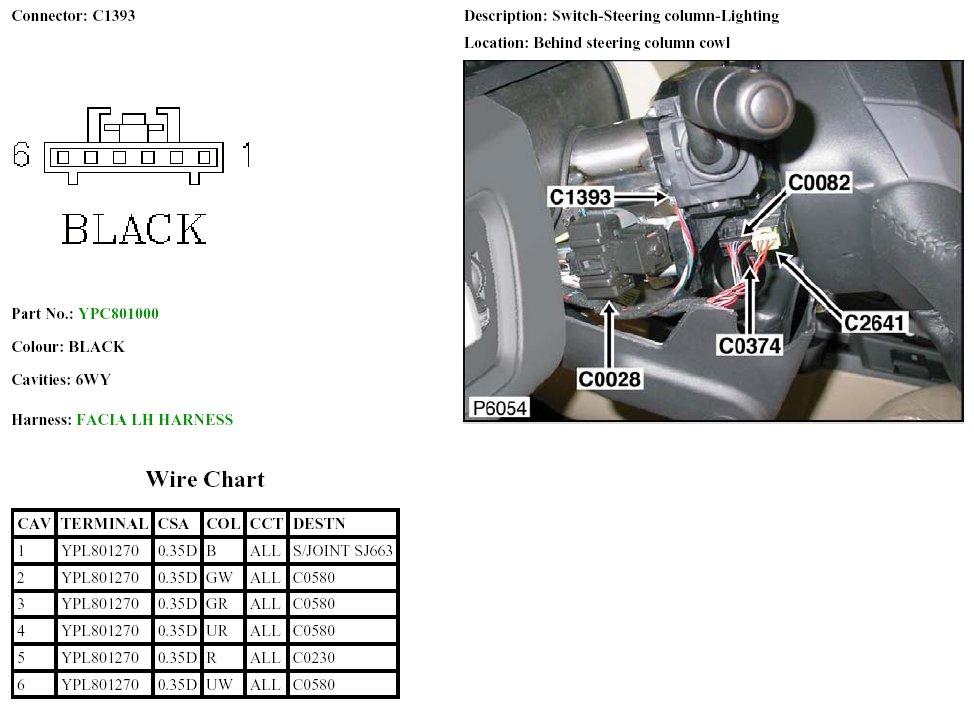

C1393:
