Home >> Land Rover >> 2007 >> LR3 (LA) V8-4.4L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Power Mirror Control Module >> Locations >> Component Locations

Component Locations



Rear View Mirrors

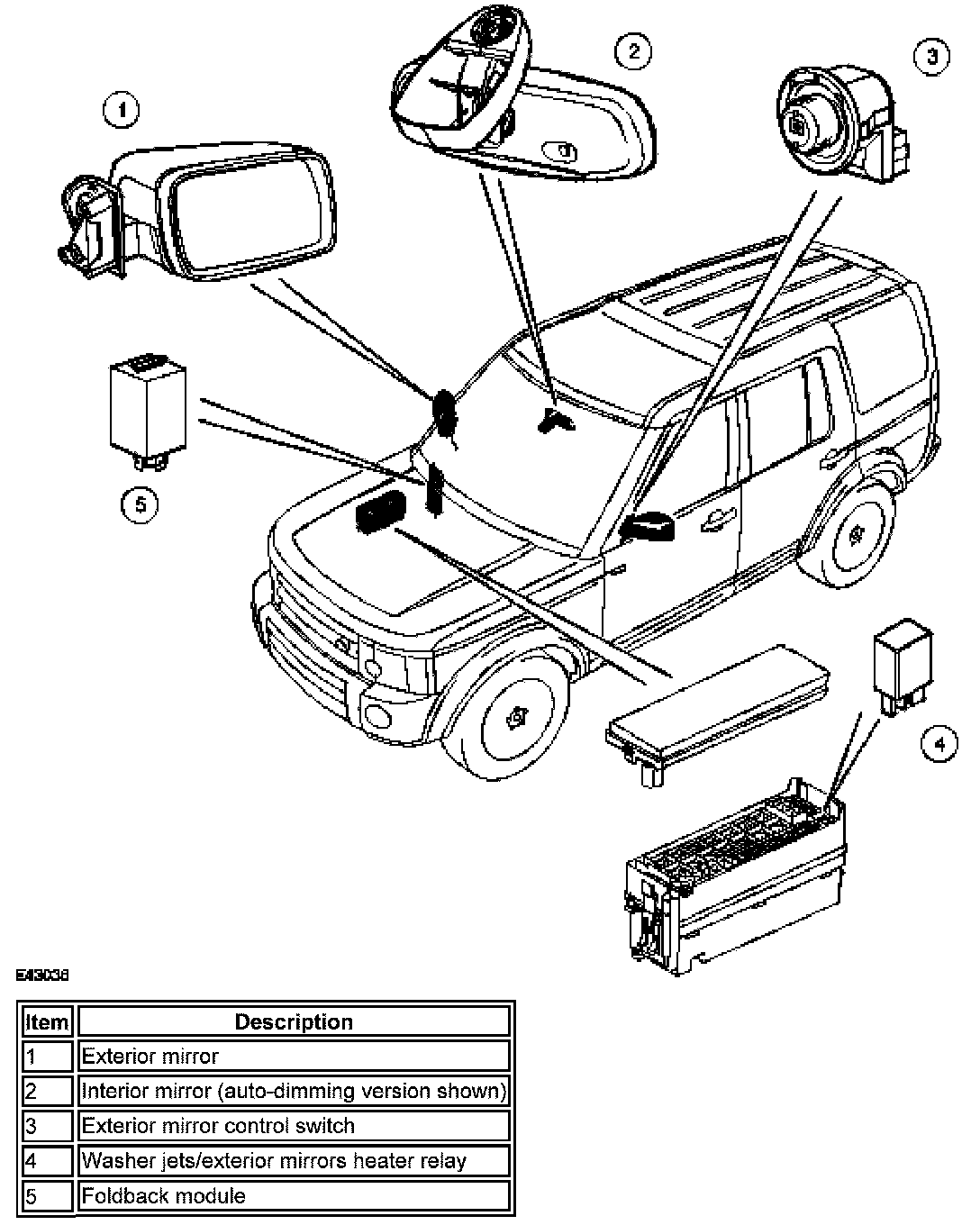

COMPONENT LOCATIONS

NOTE: LHD model shown, RHD model similar.
