Land Rover
>>
2007
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cooling System
Cooling System
Engine Cooling
Cooling System

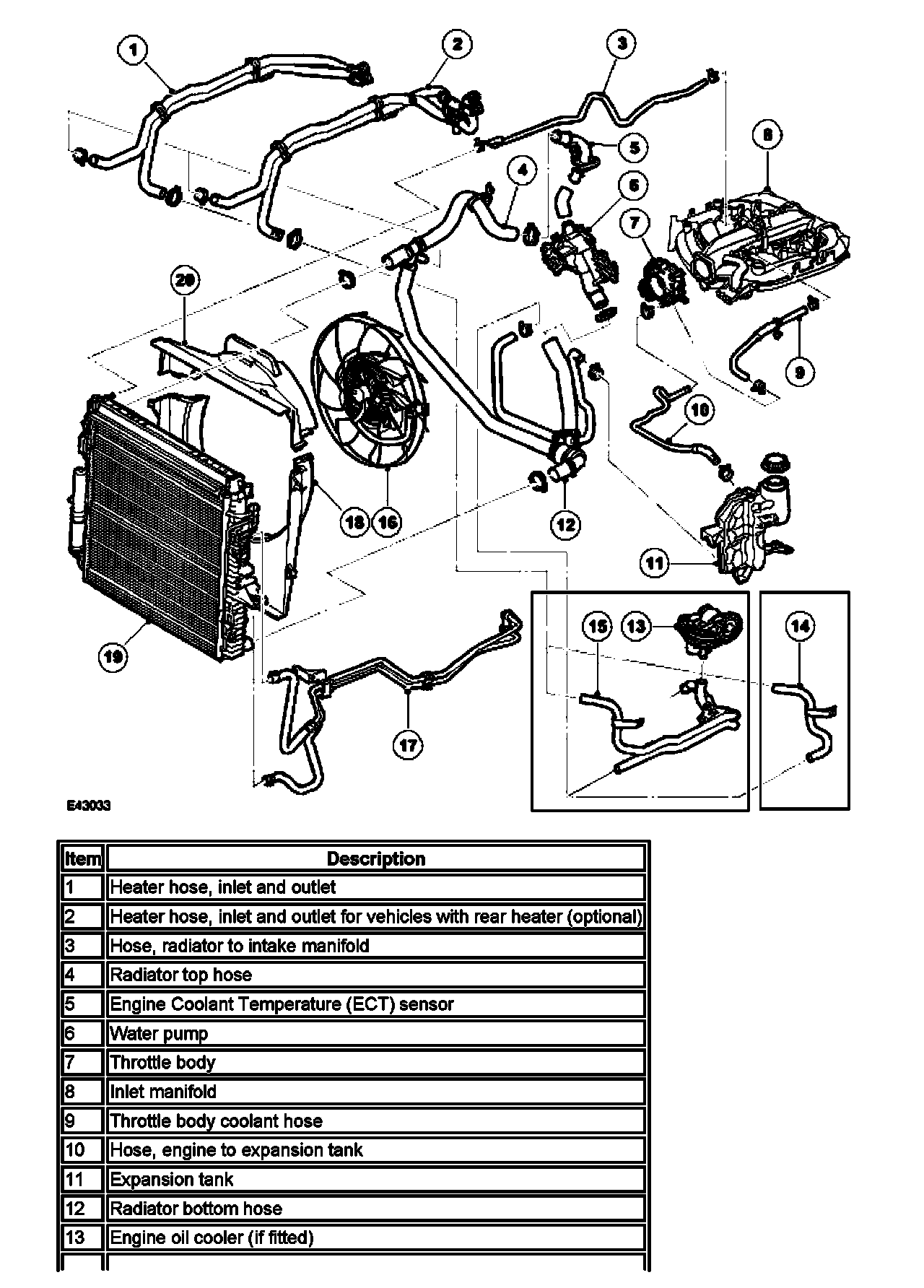

Component Layout
