Home >> Land Rover >> 2006 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Flow Meter/Sensor >> Sensor-Mass Air-Flow (MAF)

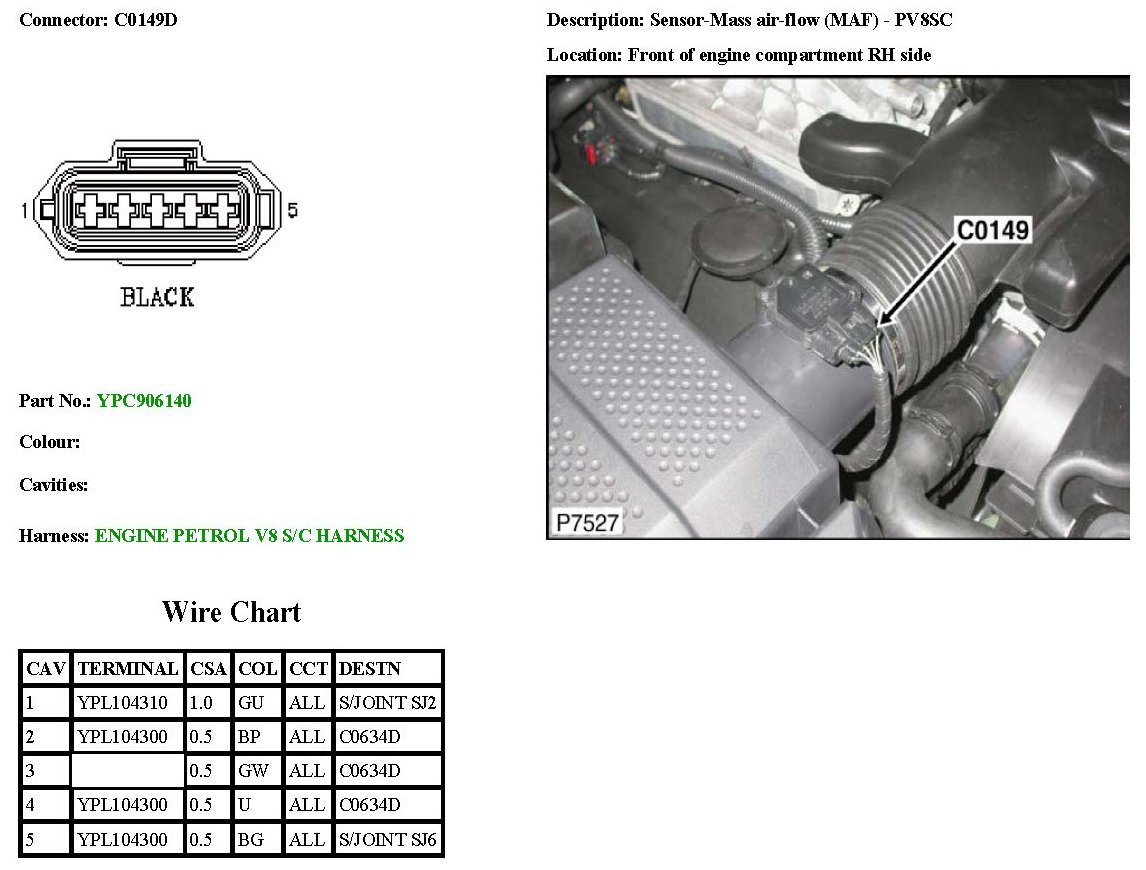

Sensor-Mass Air-Flow (MAF)

C0149D:
