Land Rover
>>
2006
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

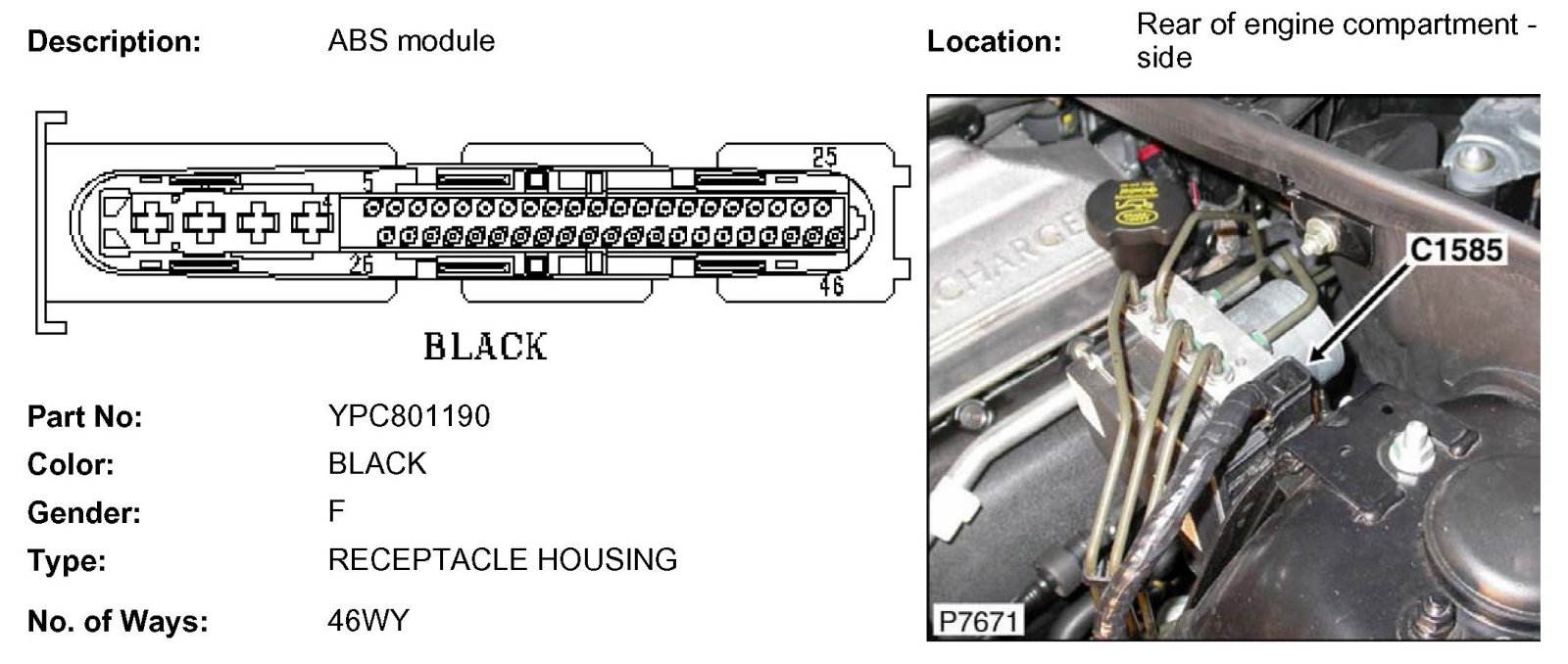

ABS Module
ABS Module

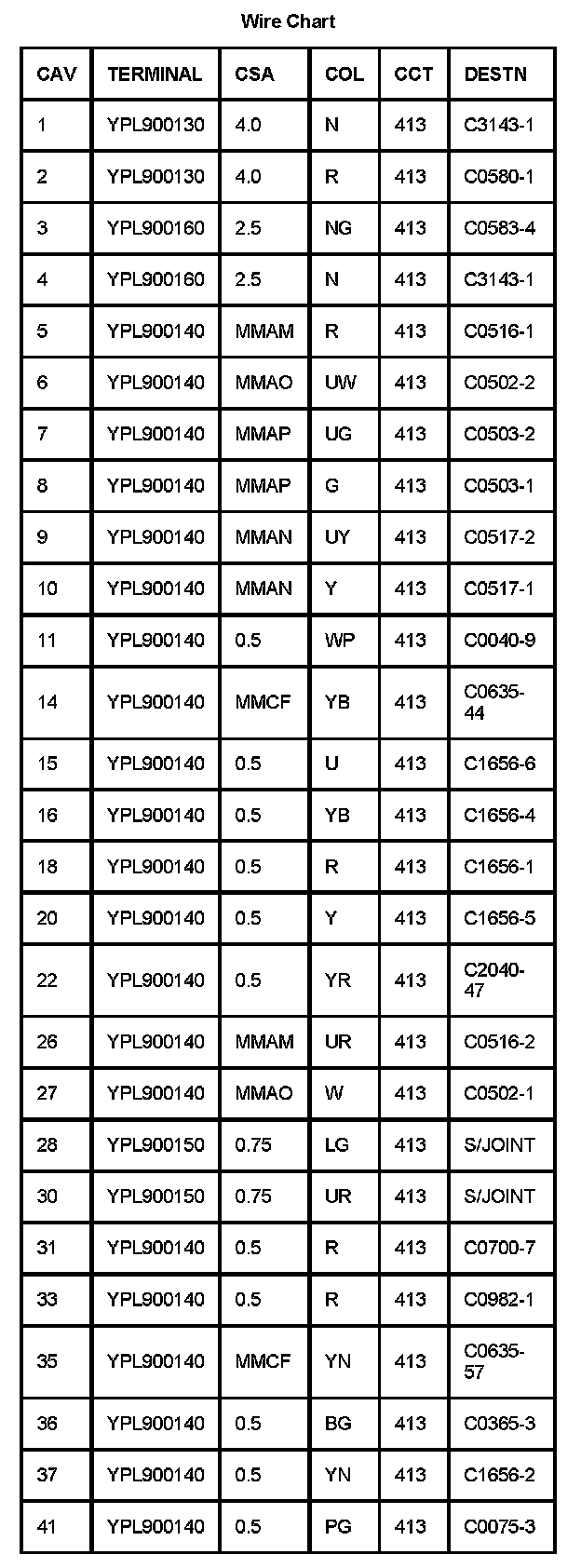

C1585 (Part 1):
C1585 (Part 2):
