Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
Control Module, Transfer Case

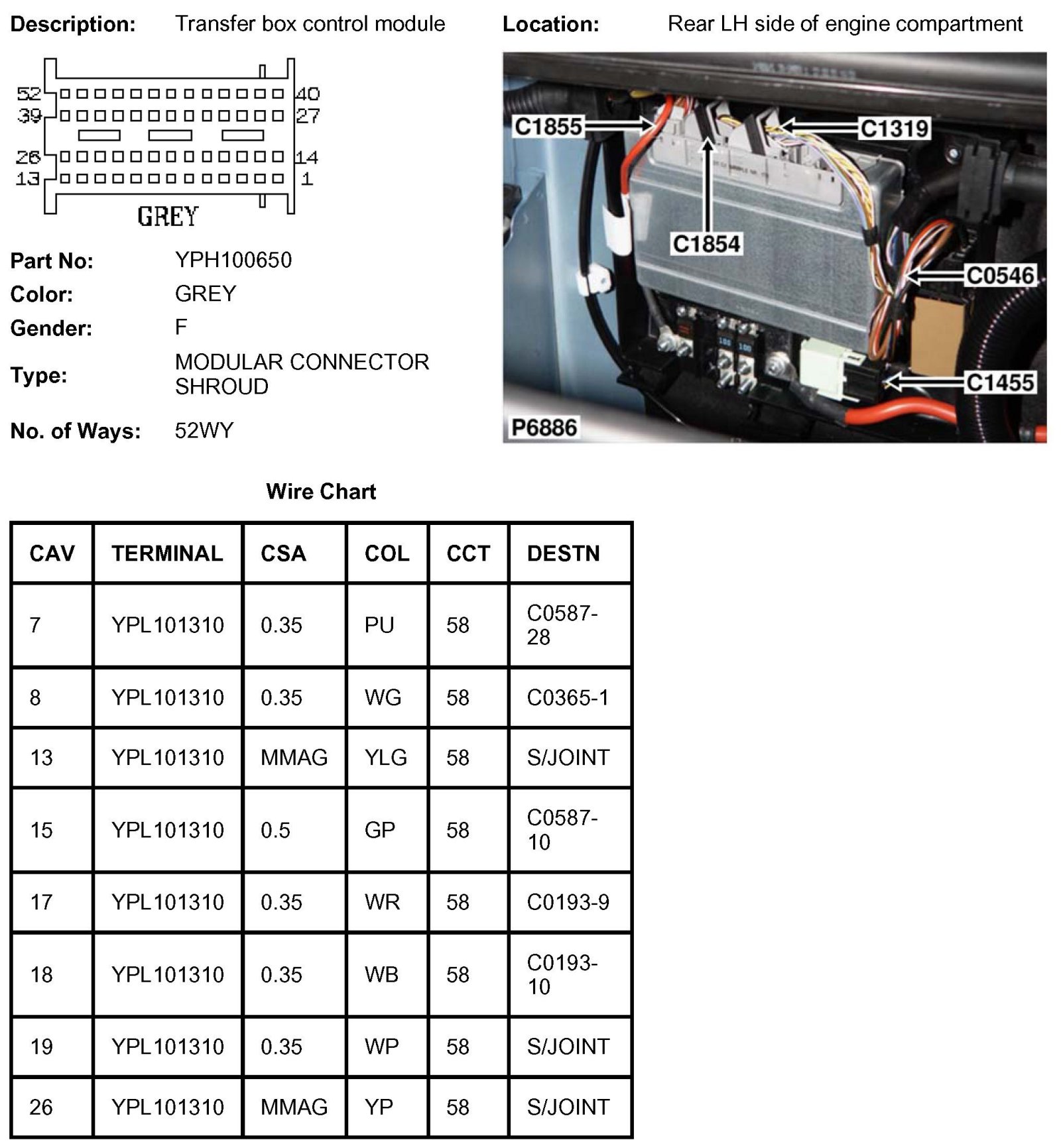

C1319:

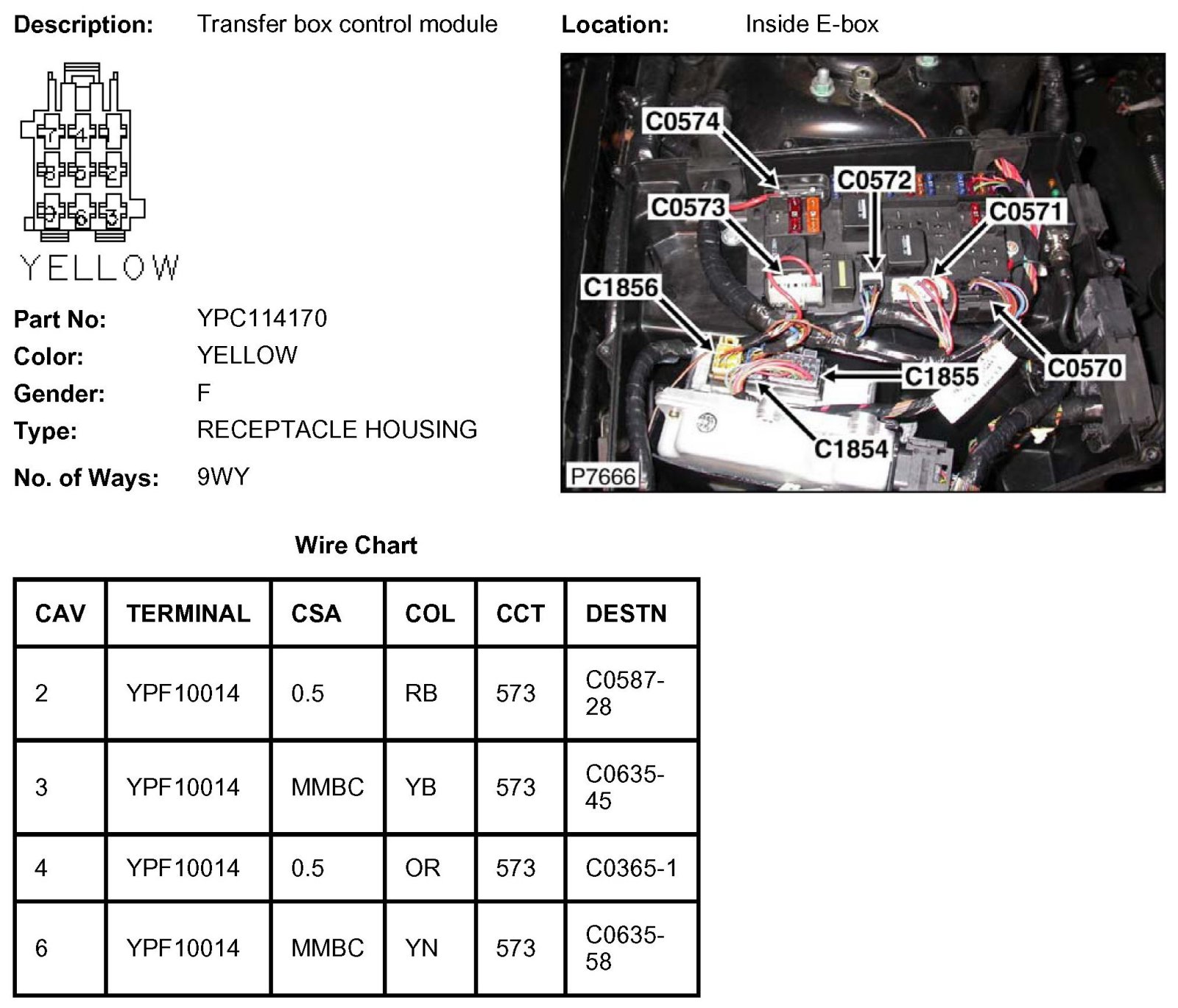

C1854:

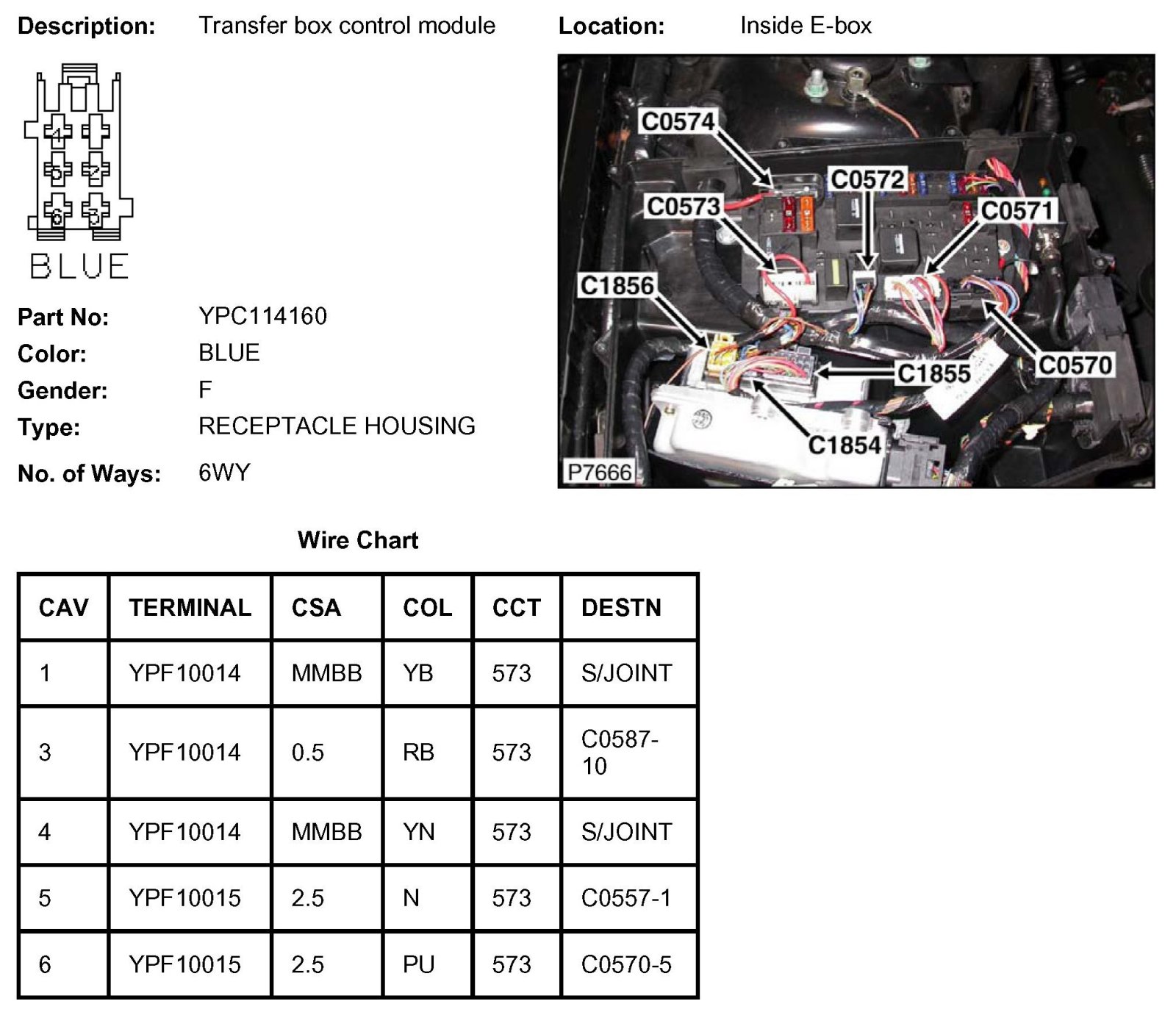

C1855:
C1855C:

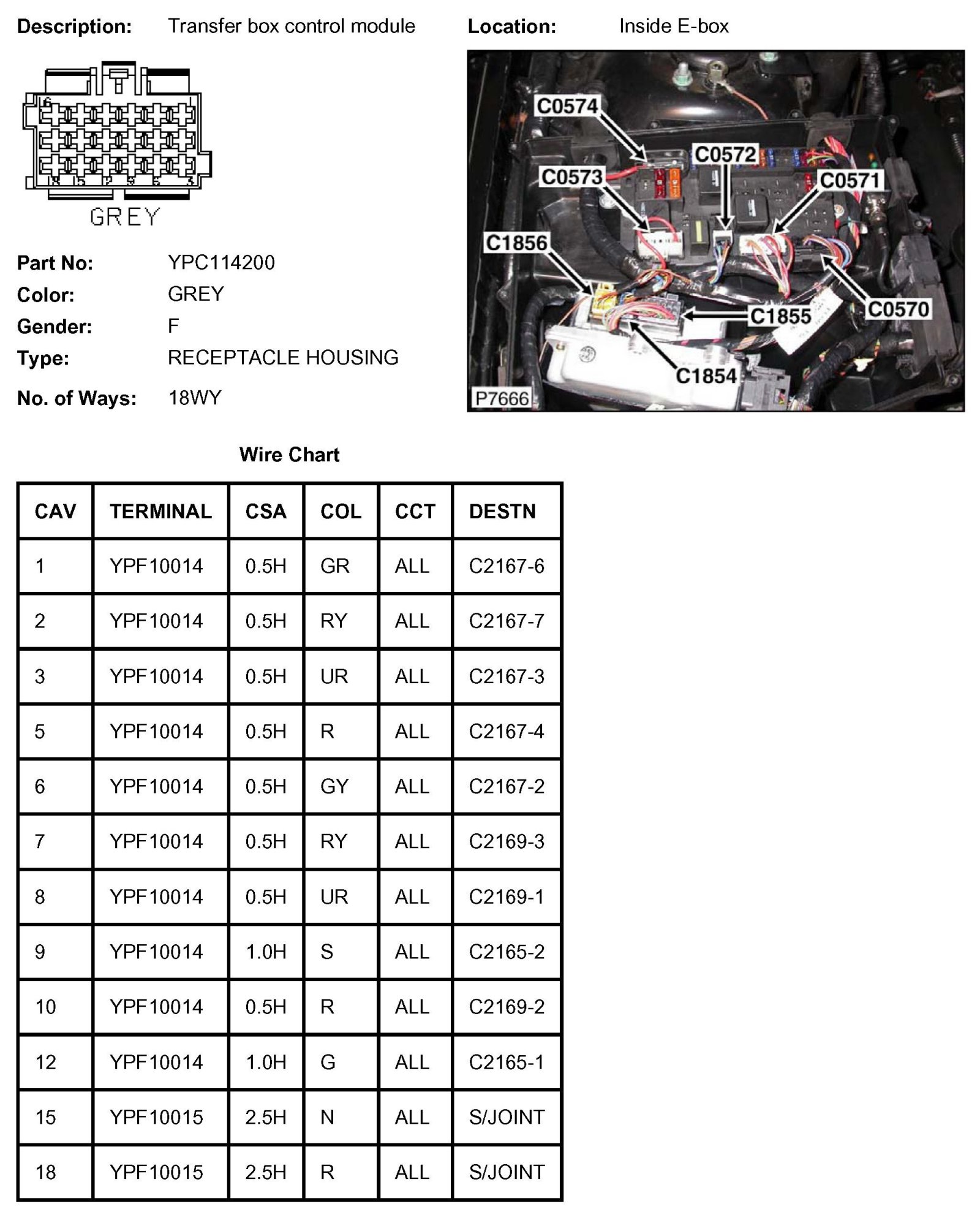

C1856:
