Navigation System Display Module: Removal
- Disconnect the battery ground cable.
For additional information, refer to: Specification information.
- Remove the instrument panel console.
For additional information, refer to: Instrument Panel Console information.

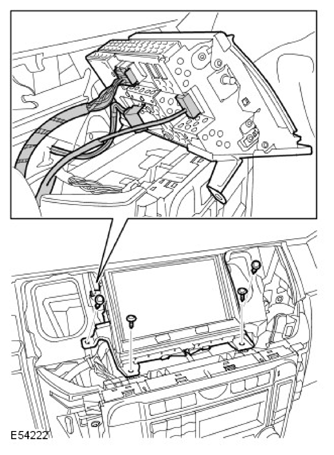

- Remove the navigation system display module.
- Remove the 4 Torx screws.
- Disconnect the fibre optic connector.
- Disconnect the 2 electrical connectors.
CAUTION:
After switching of the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.
CAUTION:
Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.
