Home >> Land Rover >> 2005 >> Freelander (LN) V6-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Motor >> Motor-Window-Rear

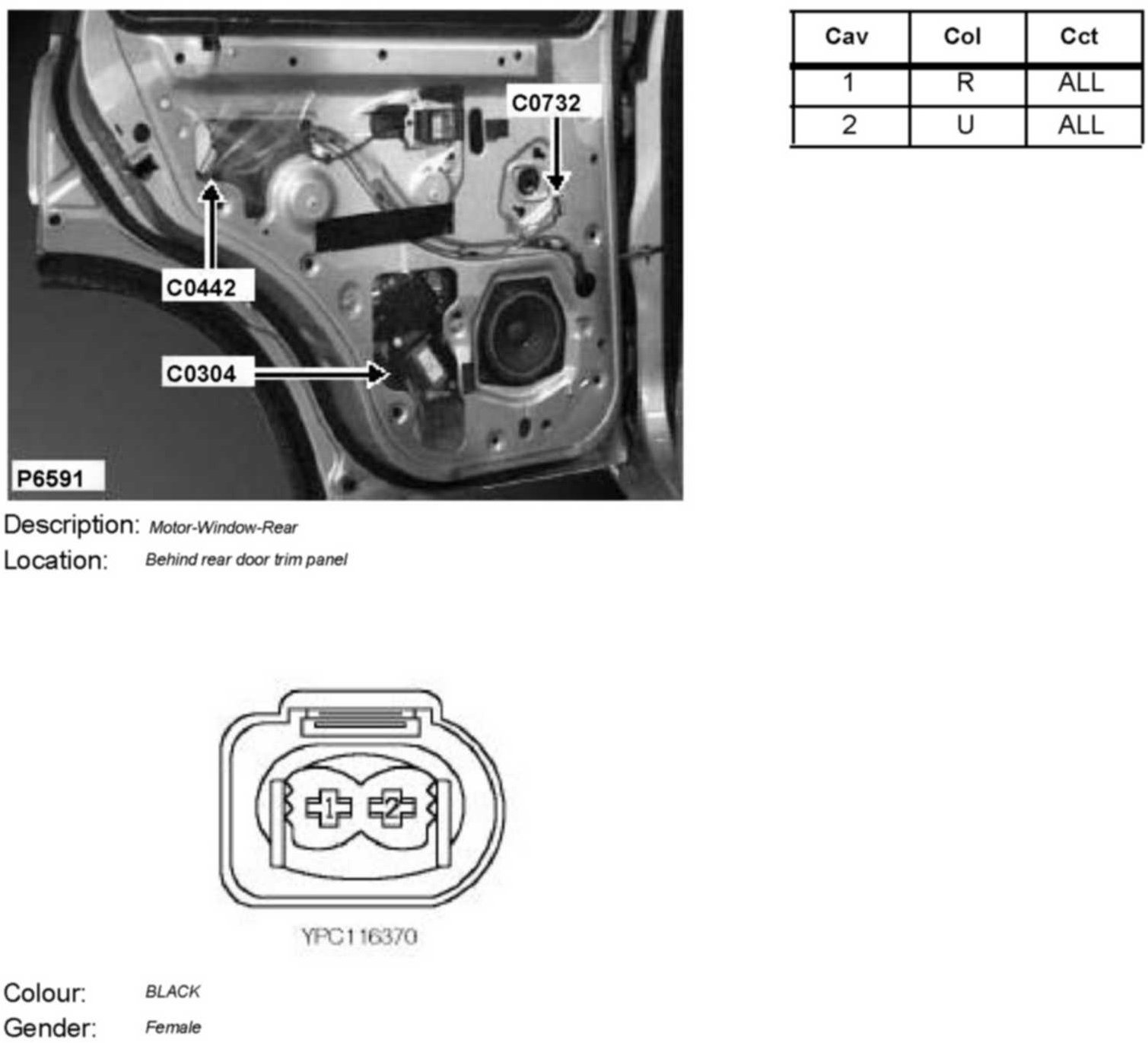

Motor-Window-Rear

C0304:
