Automatic Transmission/Transaxle

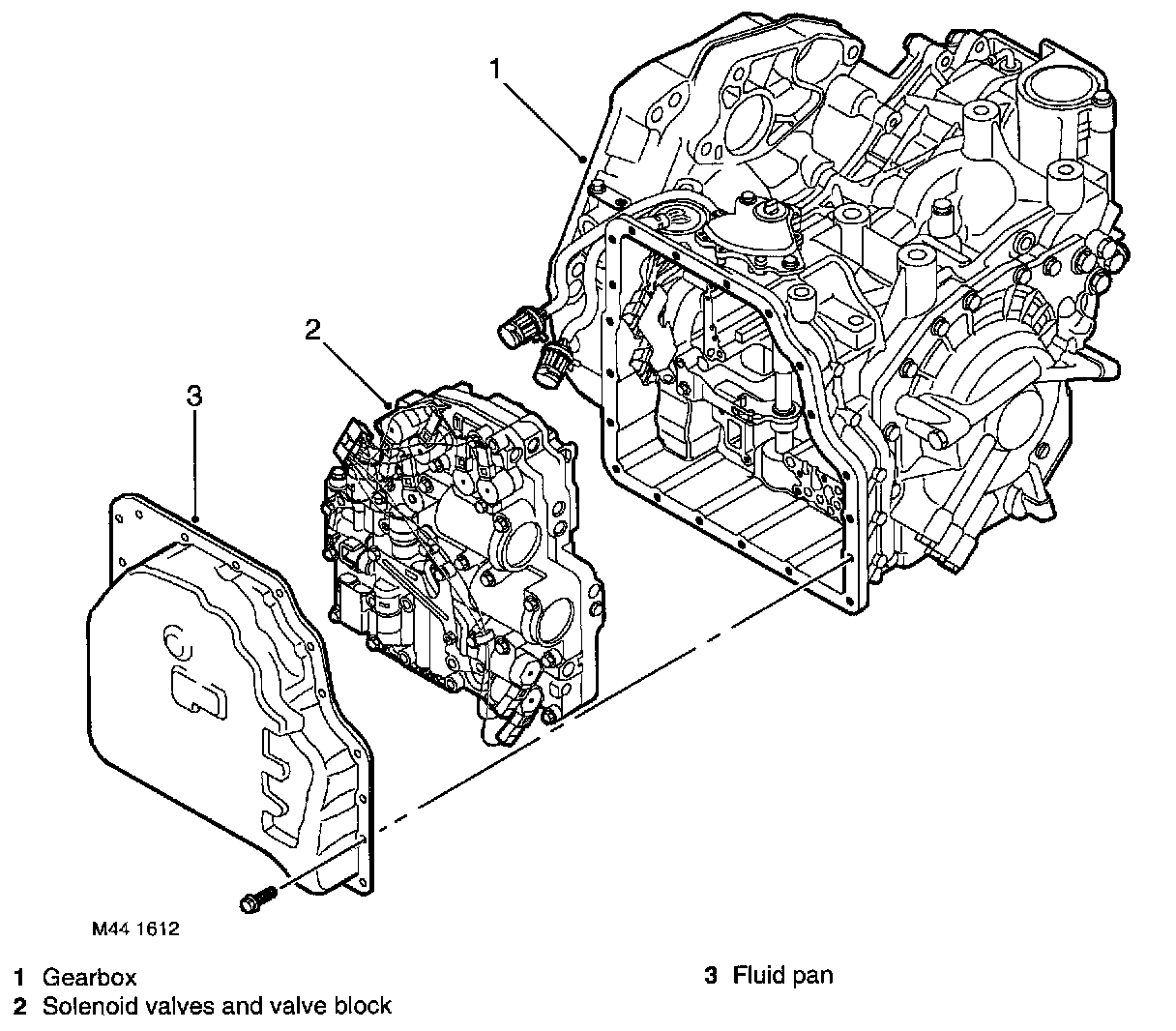

JATCO Automatic Gearbox

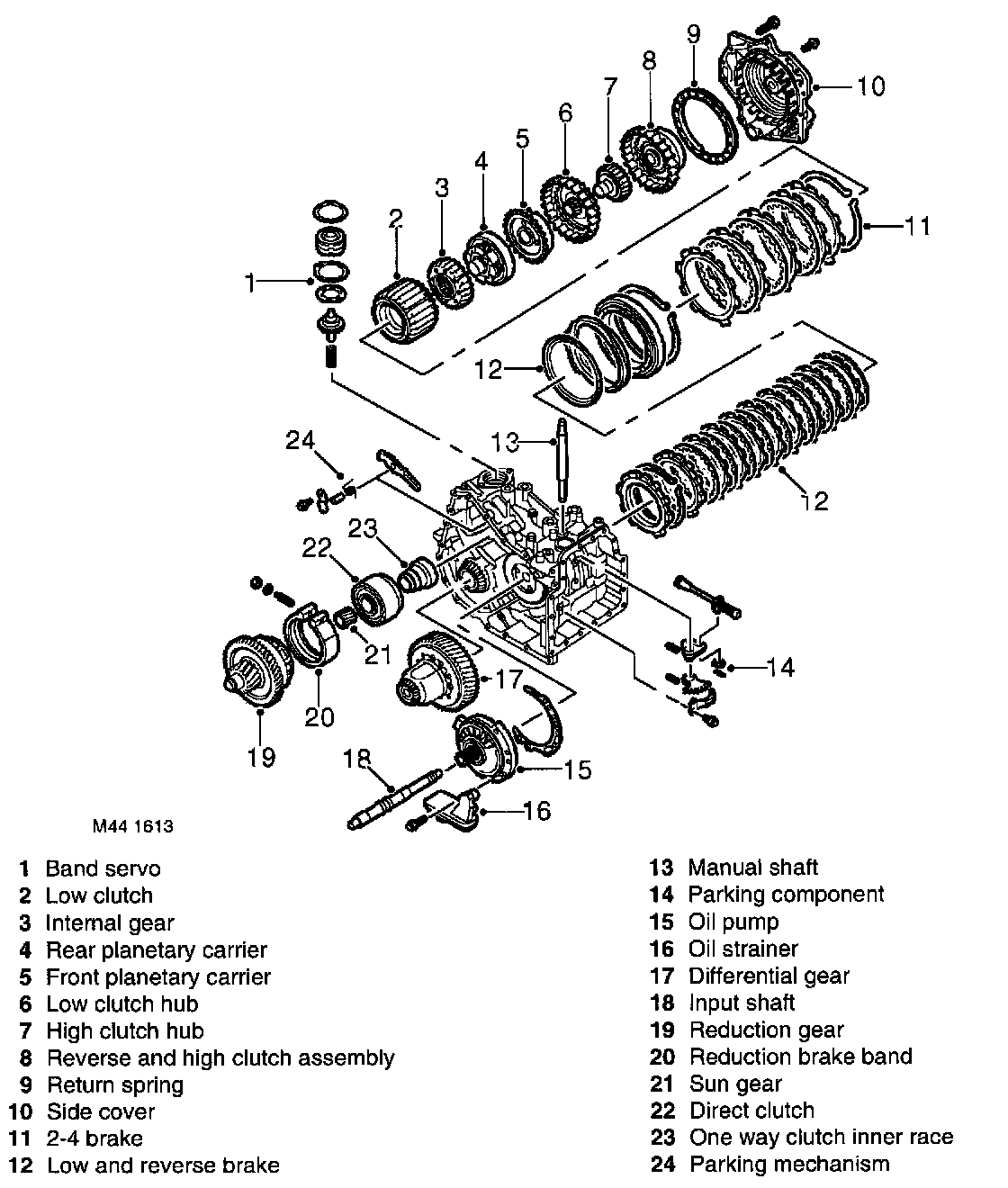

JATCO Automatic Gearbox - Exploded View

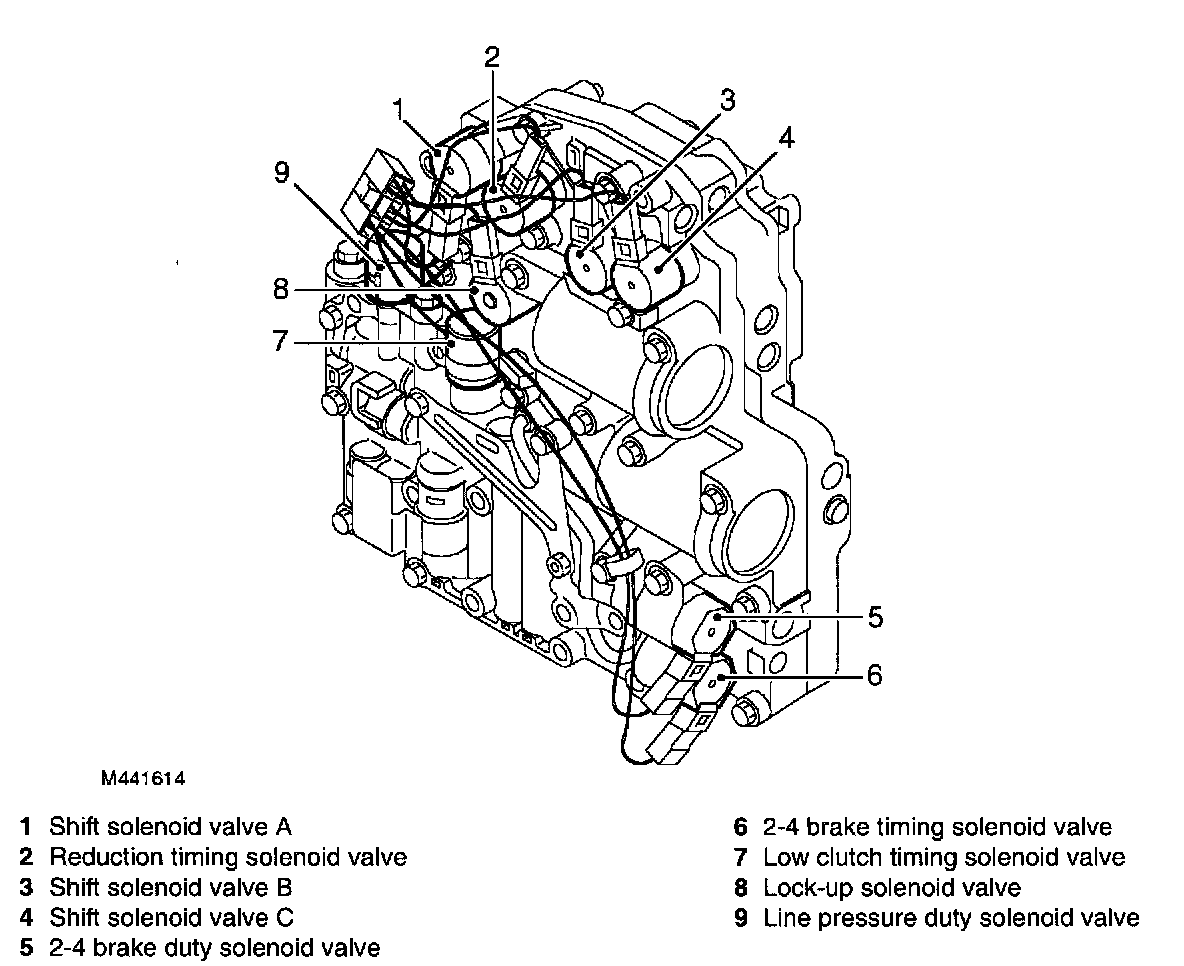

JATCO Automatic Gearbox - Valve Block and Solenoid Valves
