General Data
>>
Cooling System - K1.8 Petrol
Cooling System - K1.8 Petrol

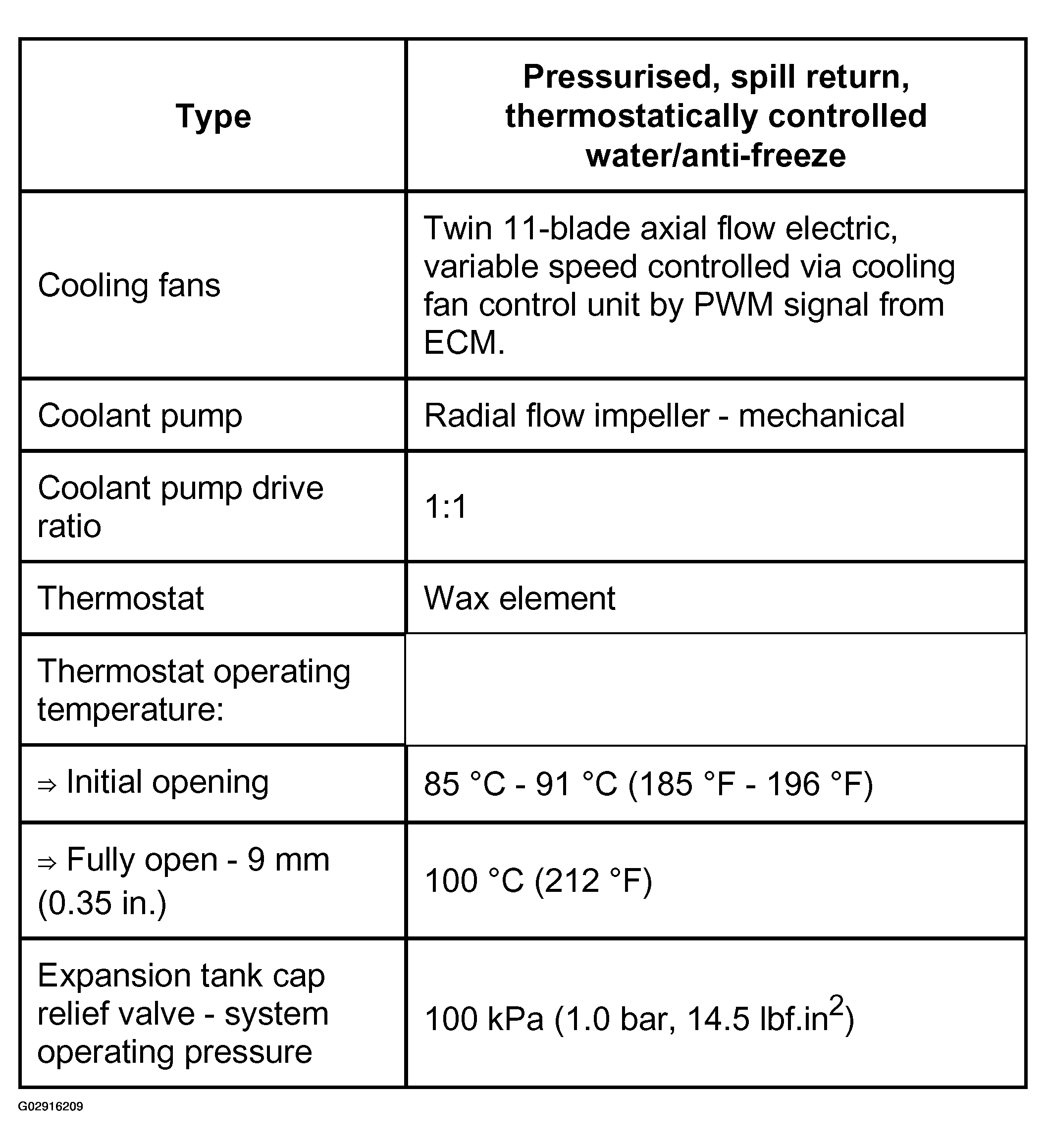

Fig 1: Cooling System Specification - K1.8 Petrol
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
