Sensor Check

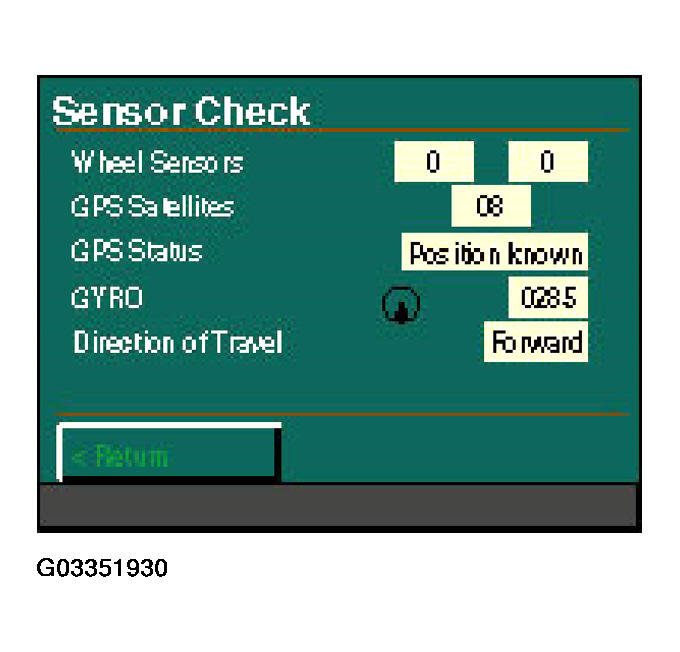

Selecting Sensor Test from the service mode menu causes the sensor check menu to be displayed. The sensor check menu is used to confirm that all the input sensors are working. Some of the tests below involve driving the vehicle for short distances. Before starting these tests ensure that an appropriate location, away from public roads and obstructions, is chosen. The system-input sensors can be tested as follows:
- Wheel Sensors - When the vehicle is stationary the values in the wheel sensor boxes should both be zero. Drive the vehicle for a short distance. While driving, a number should be displayed in the left wheel sensor box. The value in the box should be proportional to the speed of the vehicle, and increase as the speed increases.
- GPS Satellites - Indicates the number of satellites being received
- GPS Status
- Indicates the status of the GPS system by displaying one of the following messages:
- Position Known - The system has a current position fix. This indicates that the GPS system is functioning normally.
- Satellite Contact - The system is tracking a number of satellites. This indicates that the system is working correctly but does not have enough information to determine the position of the vehicle. Check that there is nothing obstructing GPS antenna's 'view' of the sky. It may take several minutes for the GPS system to acquire enough satellites to determine the vehicle's position (Position Known).
- Satellite Search - The system is searching for satellites. If this is displayed it may mean that there is a failure in the GPS system. First check that the GPS antenna's 'view' of the sky is not blocked in any way. Check harness connections between the navigation computer and the GPS antenna.
- GPS Error - There is a communication error between the GPS receiver and the navigation computer.
- GYRO - Drive the vehicle forwards, in a straight line and making left and right turns. When the vehicle is moving in a straight line the direction arrow should be pointing to the top of the screen and the gyro value beside the direction arrow should remain relatively constant. When the vehicle turns to the right, the direction arrow should turn clockwise and the gyro value should increase. The size of the angle through which the direction icon turns depends on the tightness of the turn. When the vehicle turns to the left, the direction arrow should turn anti-clockwise and the gyro value should decrease.
- Direction of Travel - When the gear lever is in any position other than reverse, the display should show Forwards . When reverse is selected, the display should change to Backwards.
Selecting < Return returns the system to the service mode menu.
