Home >> Land Rover >> 1995 >> Defender 90 (LD) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> LT230Q >> Main Casing Components

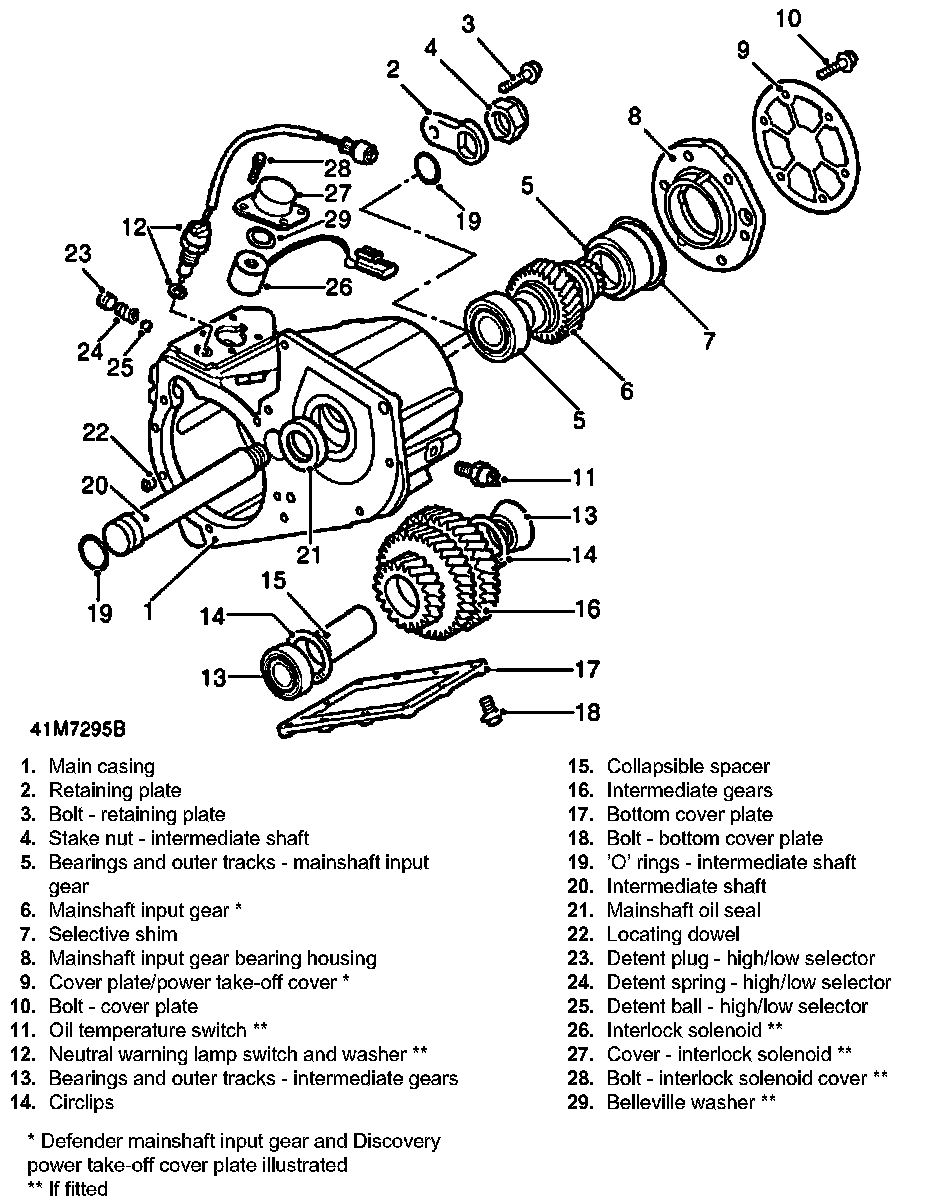

Main Casing Components

Main Casing Components:
