Home >> Land Rover >> 1995 >> Defender 90 (LD) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

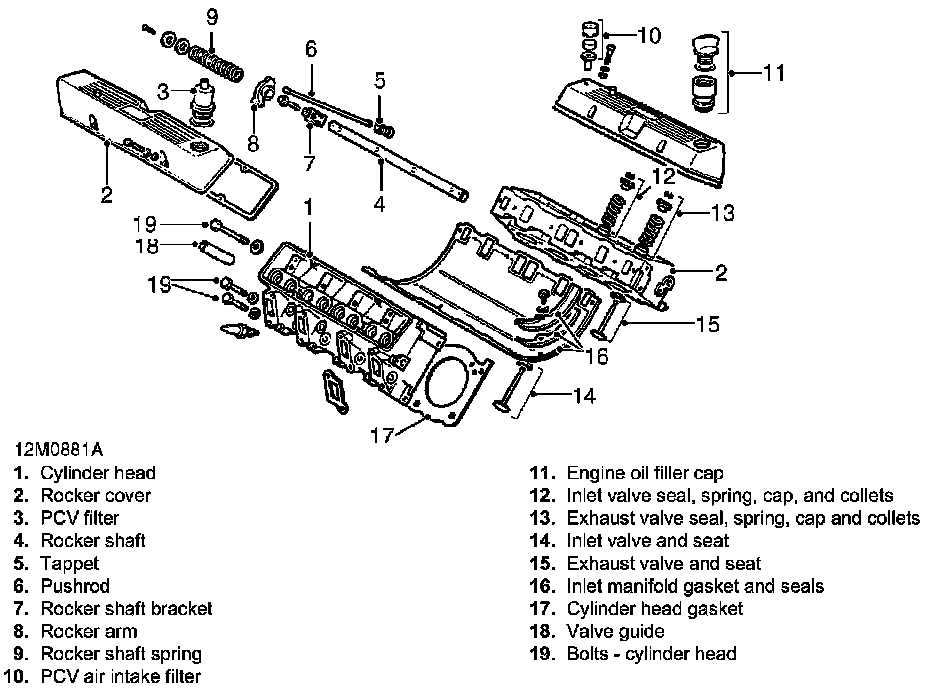

Cylinder Head Assembly

Cylinder Head Components:
