Home >> Land Rover >> 1992 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub >> Front >> With ABS

With ABS

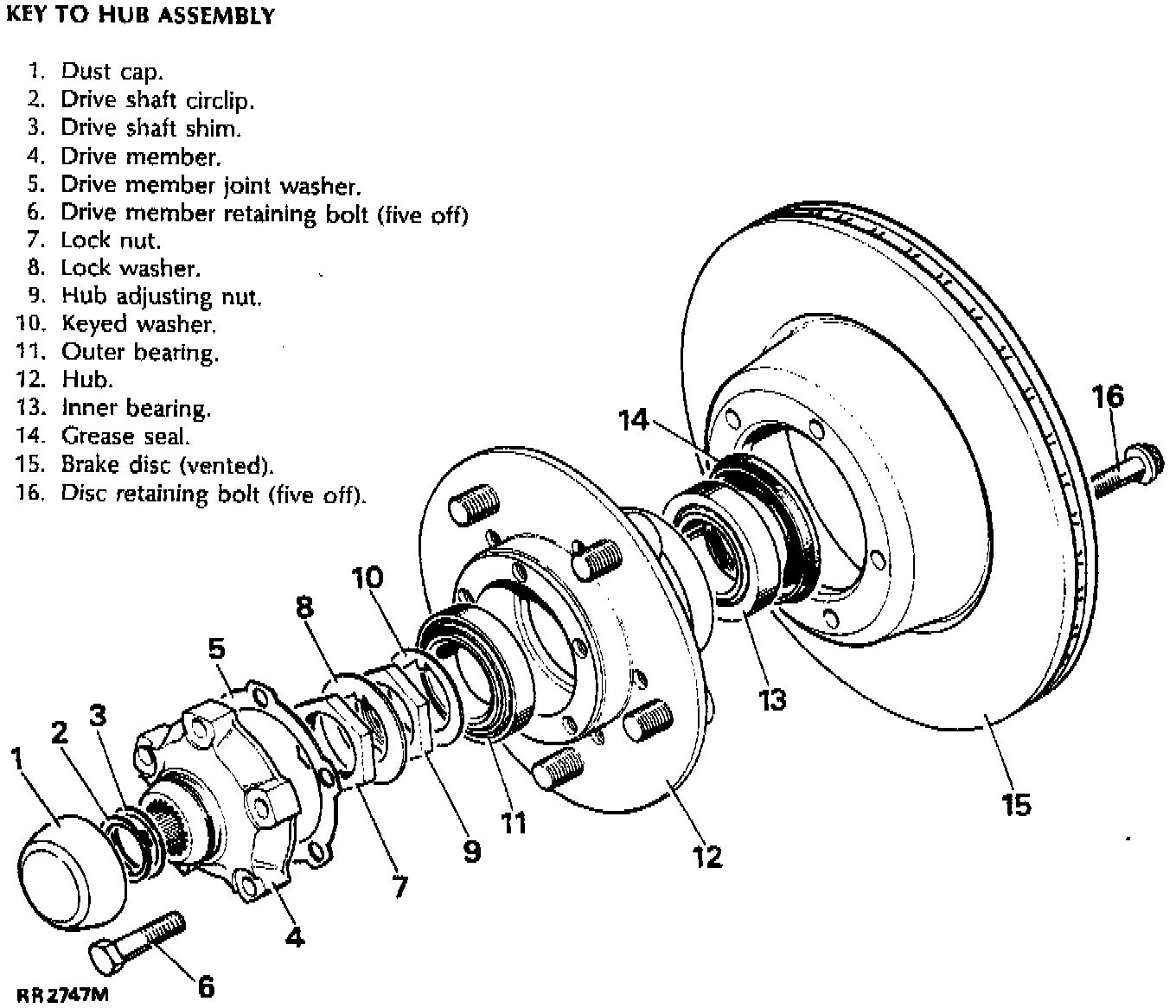

Front Hub Assembly (ABS):
