Home >> Land Rover >> 1987 >> Range Rover (LH) V8-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case

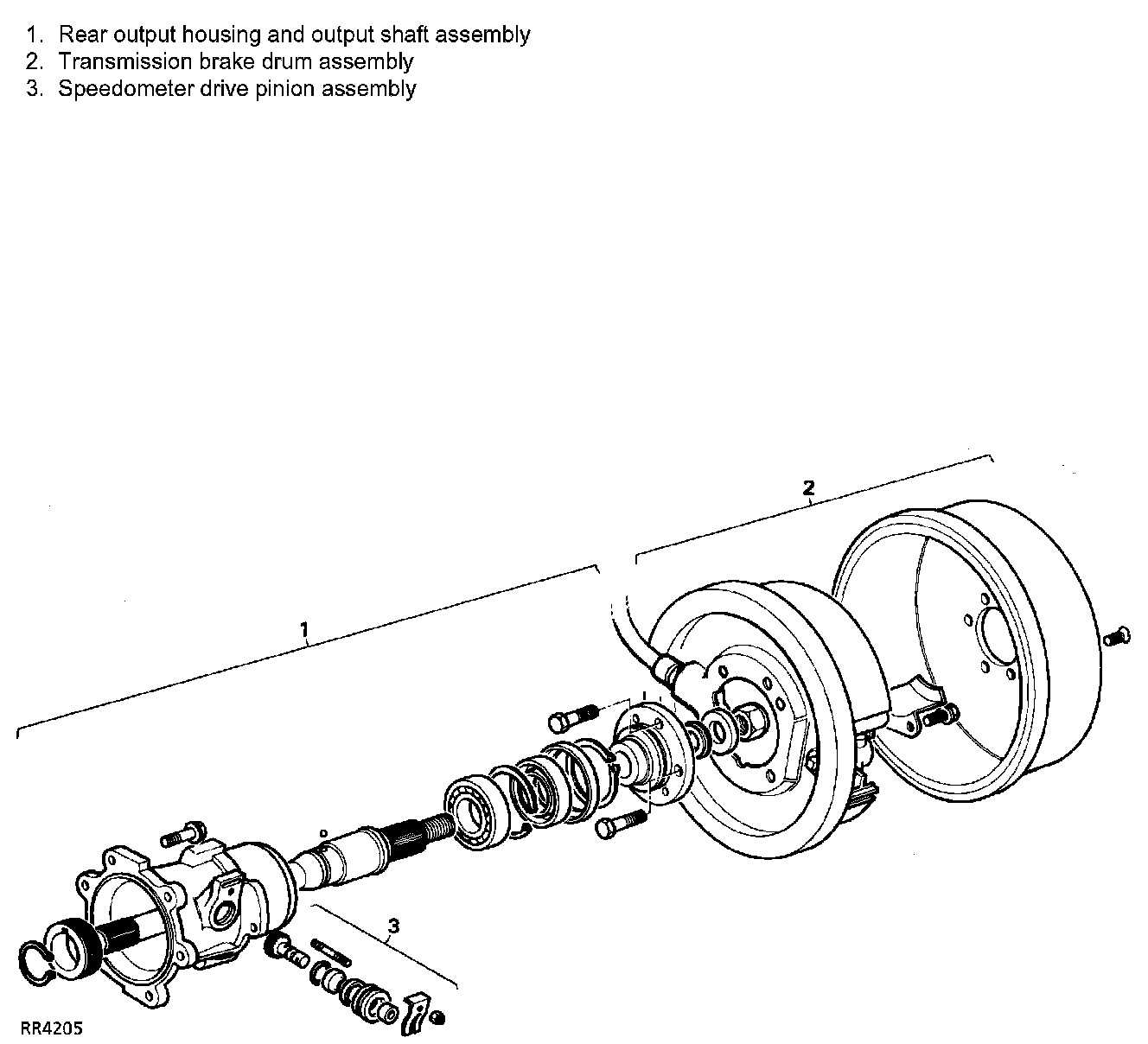

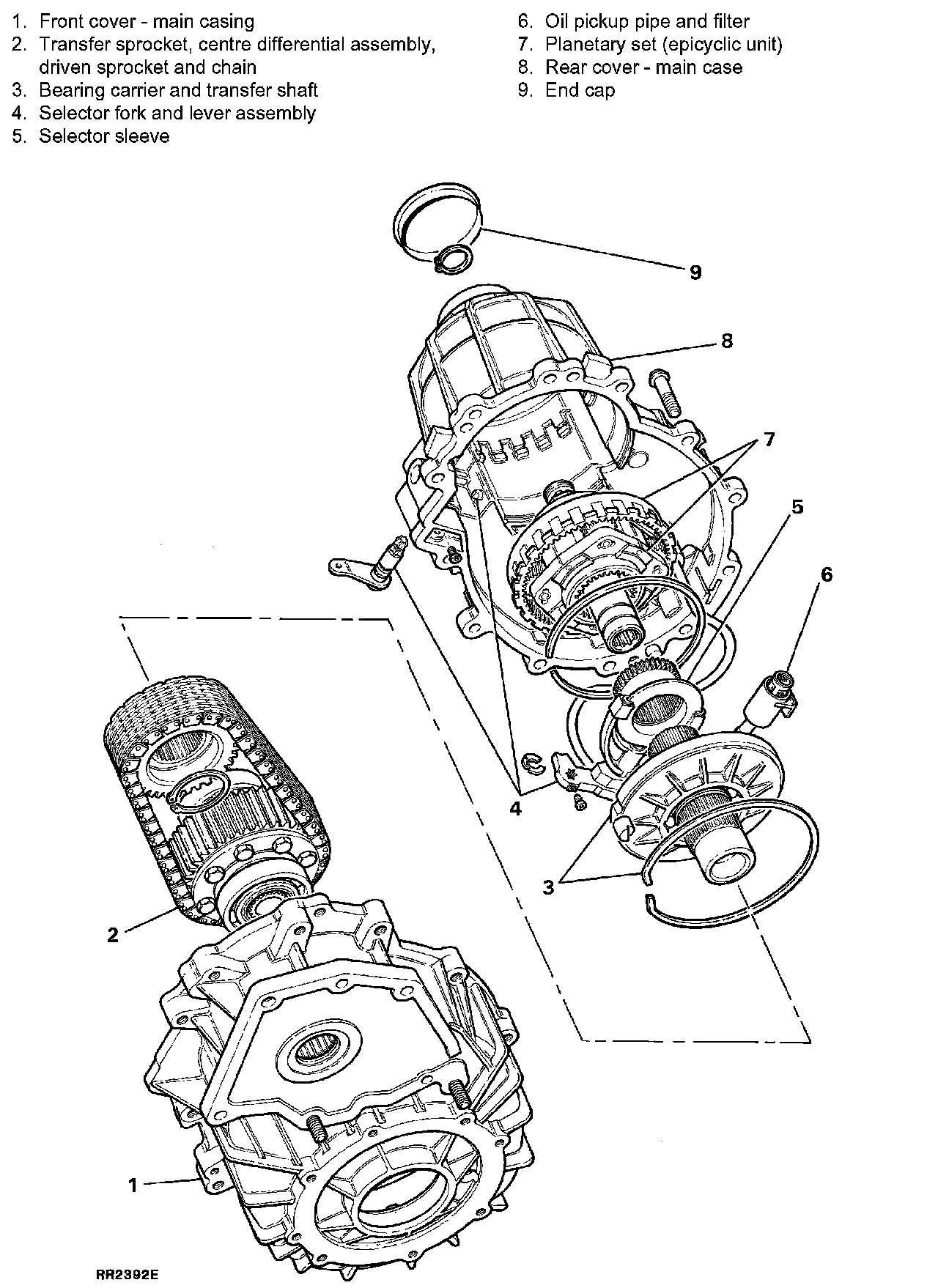

Transfer Case

Borg Warner Gearbox Illustrated Assemblies

Service repair no - 41.20.28
