Connector And Terminal Function

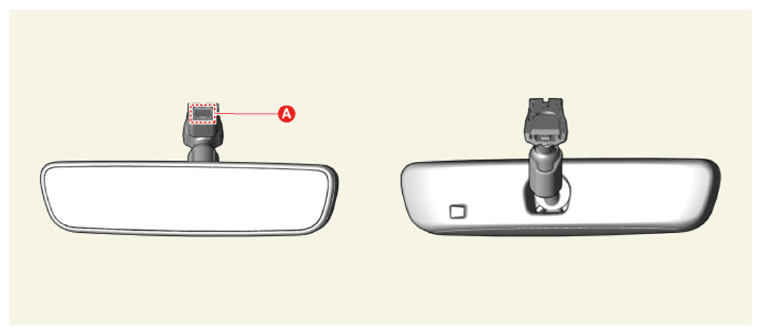

G16425879Courtesy of KIA MOTORS AMERICA, INC.
Connector A Terminal Function
G16425880Courtesy of KIA MOTORS AMERICA, INC.
 1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 Ground
9 Back-up lamp signal
10 IG 1
