Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

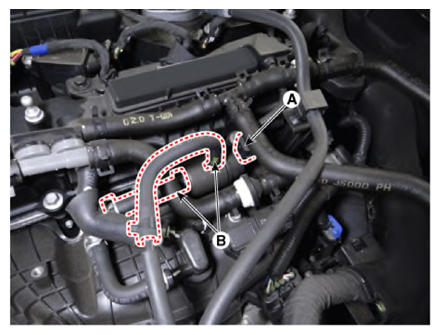

  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
G13423560Courtesy of KIA MOTORS AMERICA, INC.

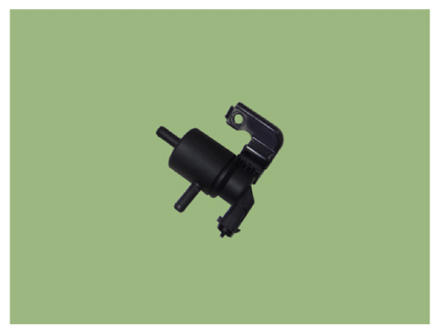

G13423561Courtesy of KIA MOTORS AMERICA, INC.
