Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

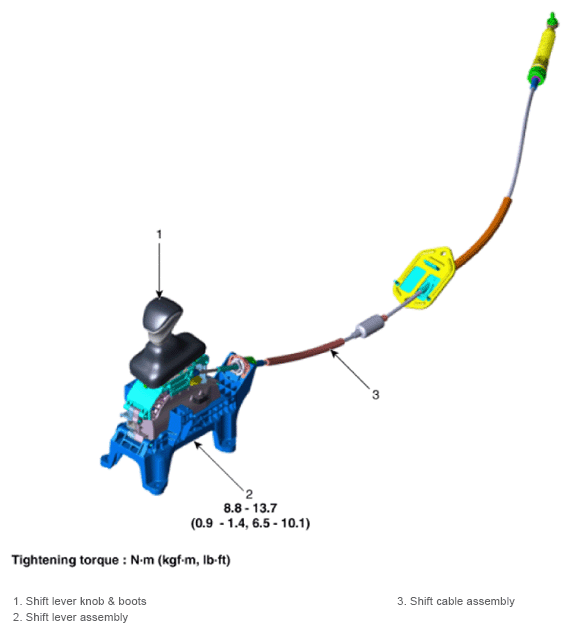

Fig 1: Shift Lever Components Location With Torque Specification
G13284056Courtesy of KIA MOTORS AMERICA, INC.
