Components And Components Location: Components

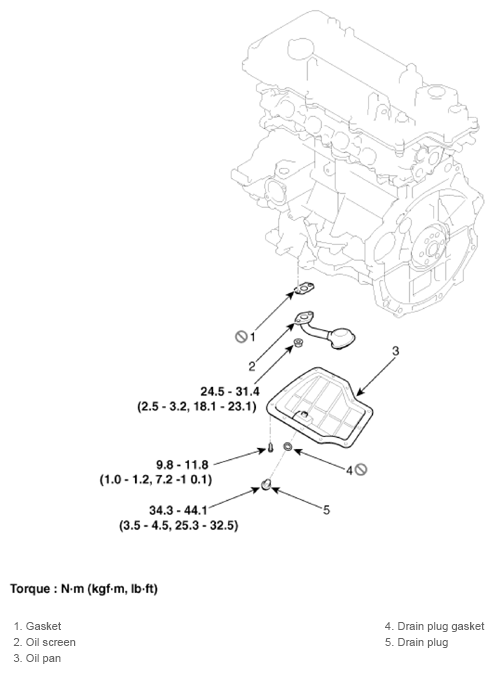

Fig 1: Oil Pan Components Location With Torque Specification

G13280613

Courtesy of KIA MOTORS AMERICA, INC.
