FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

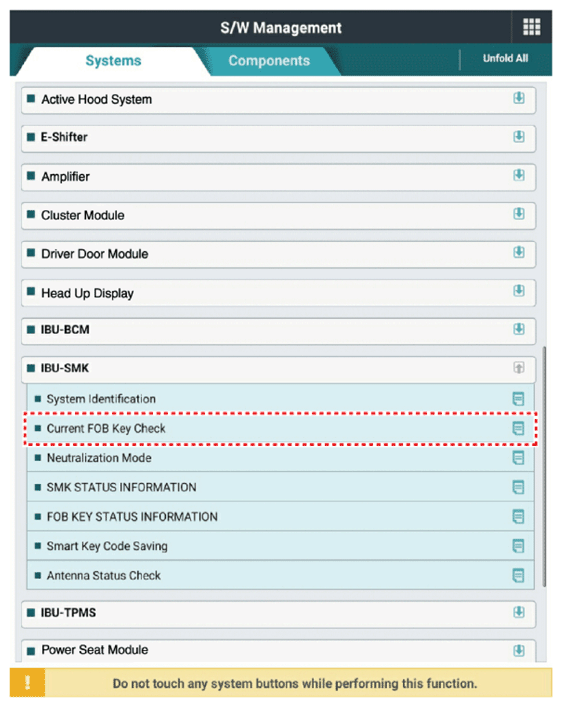

    G13482095Courtesy of KIA MOTORS AMERICA, INC.

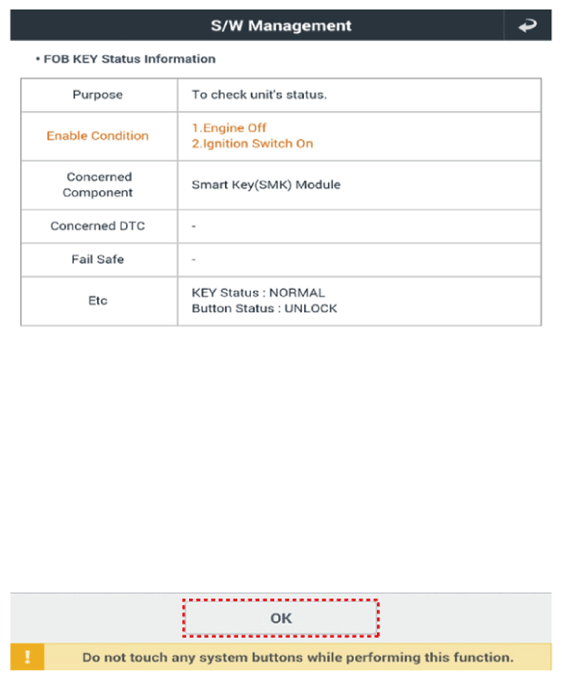

    G13482096Courtesy of KIA MOTORS AMERICA, INC.

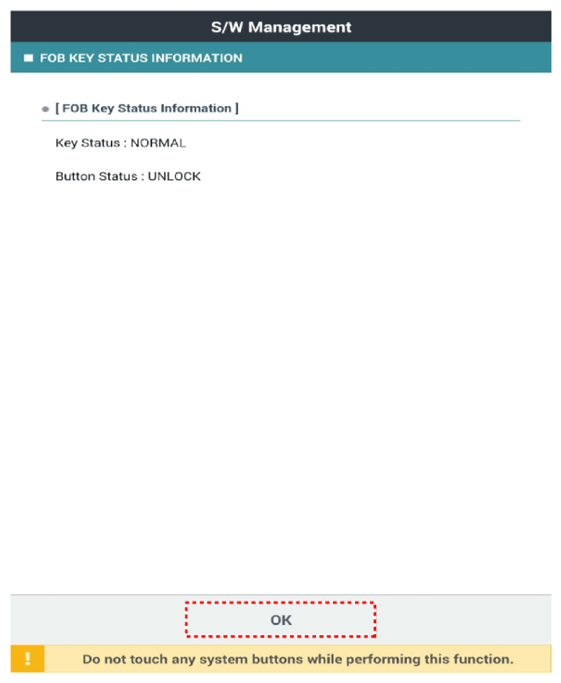

    G13482097Courtesy of KIA MOTORS AMERICA, INC.
