Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

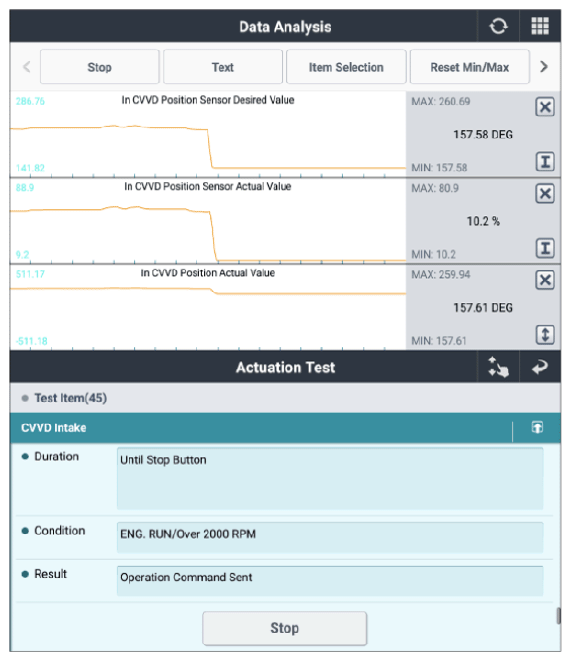

Engine "ON". Over 2000RPM.	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the CVVD actuator and Go to "VERIFICATION OF REPAIR " procedure.
In case of replacing CVVD, perform following "CVVD learning" procedures and Go to "VERIFICATION OF REPAIR " procedure.
* In case of perform "CVVD learning", perform "N" gear racing test.
