Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.

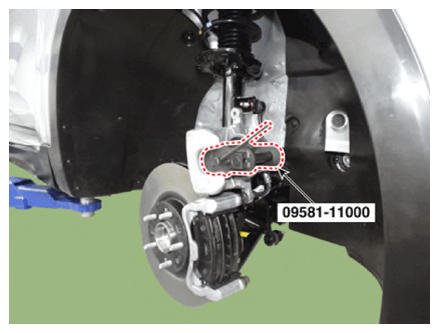

  2. Use a SST (09581-11000) when installing the brake caliper assembly.
    NOTE:
    • Carefully press it to avoid damaging the piston inlet.
    • Make sure not to let the piston interfere when assembling the caliper body to the carrier.
    G13835214Courtesy of KIA MOTORS AMERICA, INC.
  3. After installation, bleed the brake system.

    (Refer to " 1st Air Bleeding (Normal Brake System)  ")

  4. Check the brake oil leakage and pedal operating condition.
