Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6L (7 Of 7) >> DTC U2003-00: Invalid Data Received From CVVD Motor Control Module >> DTC Information >> Diagnostic Flow Chart

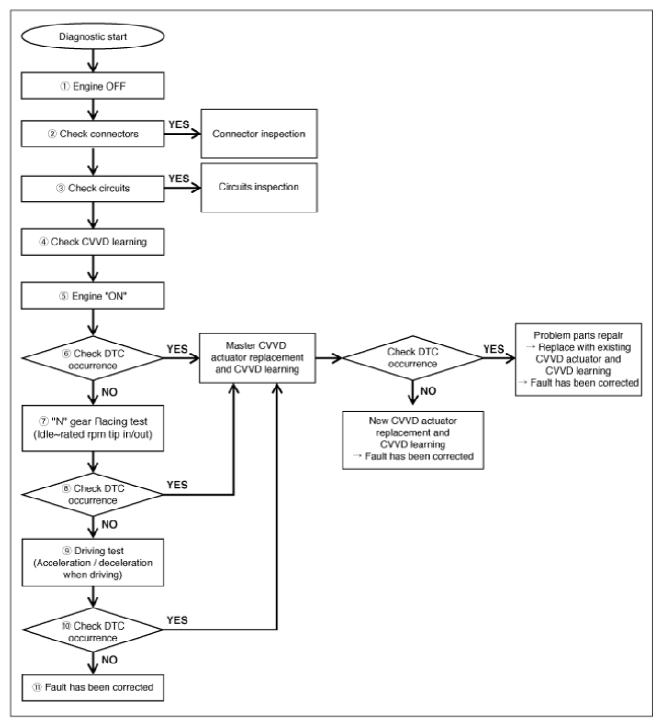

Diagnostic Flow Chart

G13810117Courtesy of KIA MOTORS AMERICA, INC.
