Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dynamic damper (A).

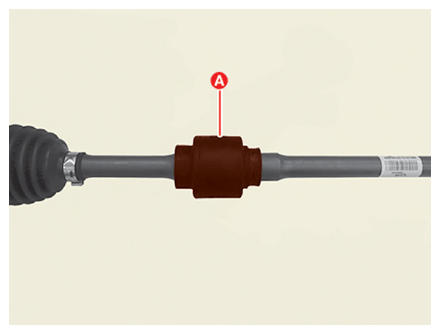

    G14561396Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing the dynamic damper, install it in the direction of the arrow. Installing in the wrong direction can cause secondary quality problems.

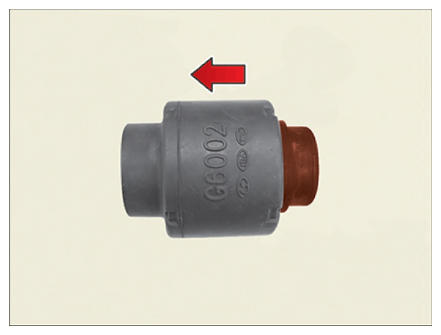

    G14561397Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the dynamic damper band (A) using SST (09495-39100).

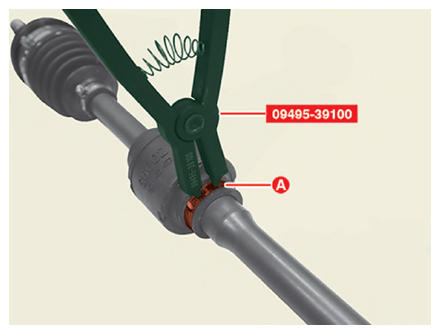

    G14561398Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing the dynamic damper (A), make sure that the damper fits into the groove (B).

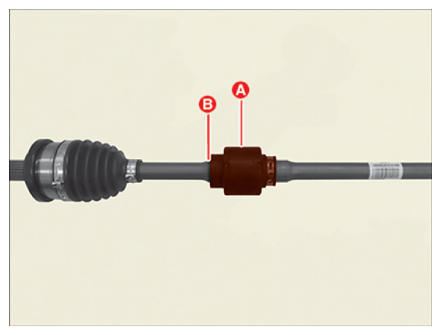

    G14561399Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
