Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

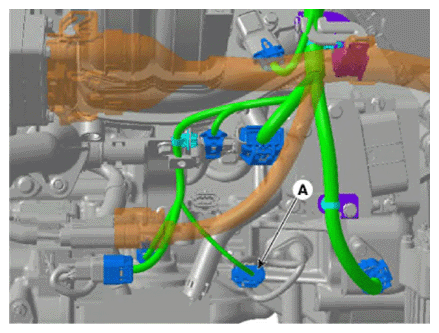

    G13388065Courtesy of KIA MOTORS AMERICA, INC.

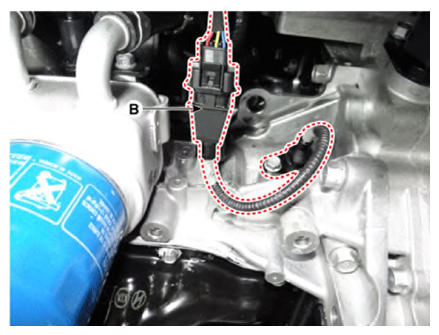

G13388066Courtesy of KIA MOTORS AMERICA, INC.
