Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5
G13485043Courtesy of KIA MOTORS AMERICA, INC.

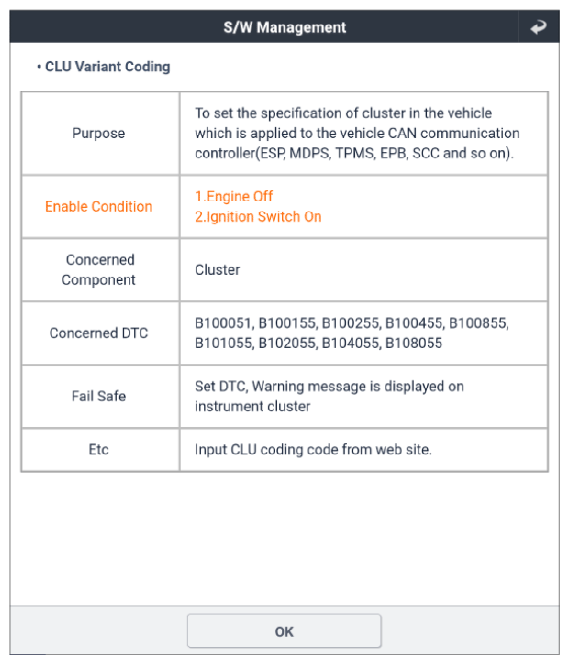

G13485044Courtesy of KIA MOTORS AMERICA, INC.

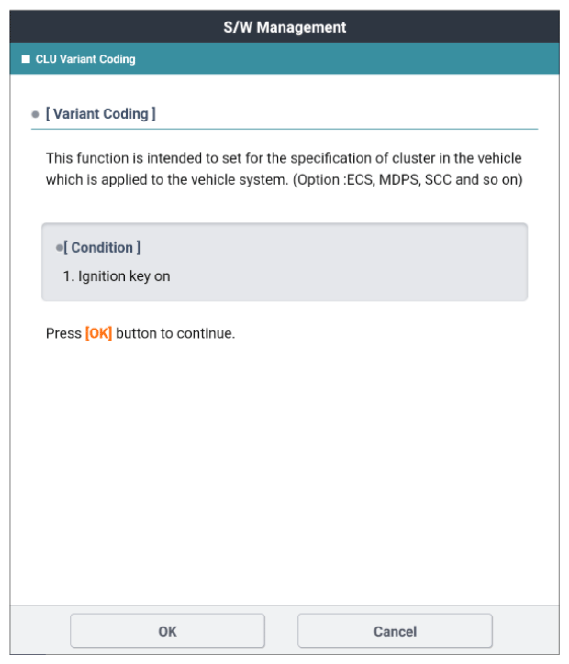

G13485045Courtesy of KIA MOTORS AMERICA, INC.

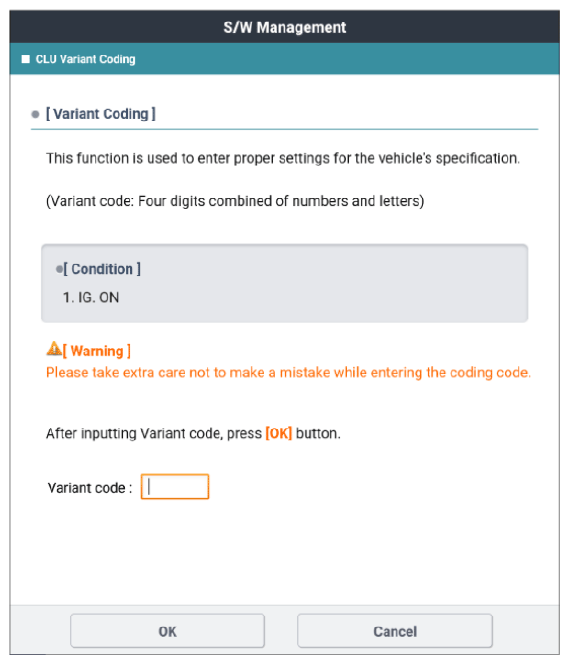

G13485046Courtesy of KIA MOTORS AMERICA, INC.
G13485047Courtesy of KIA MOTORS AMERICA, INC.
