Components And Components Location: Components

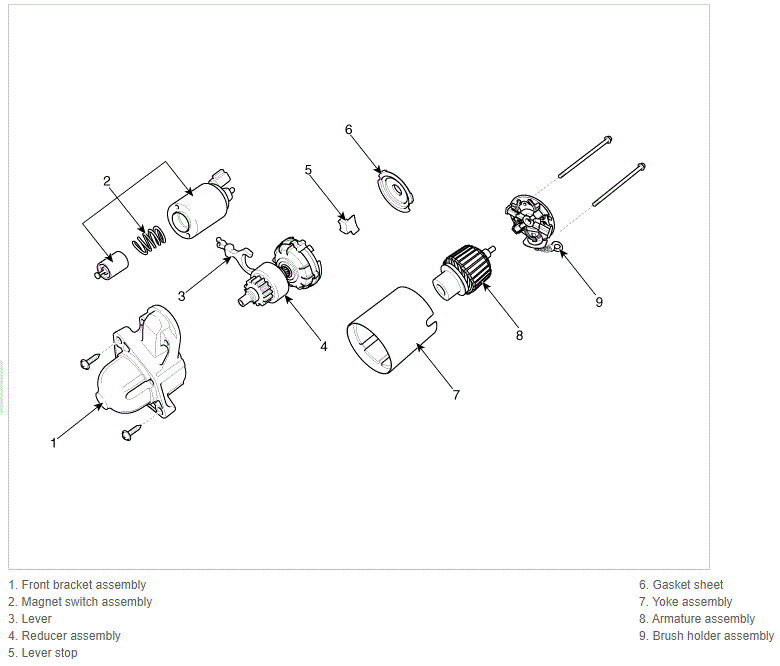

Fig 1: Starter Assembly Exploded View

G13307010

Courtesy of KIA MOTORS AMERICA, INC.
